UC3843BN

UC3843BN Overview

This product is manufactured by STMicroelectronics. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 500 kHz is 60 kHz. Output Voltage is 4.90 V to 5.10 V Output current: 1000 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the Current Mode PWM Controllers type. STMicroelectronics is a trusted brand for quality electronics 50 ns fall time 30 V operating supply voltage range Switching Controllers product type Rise Time is 50 ns. 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.032805 oz of Unit Weight

UC3843BN Image

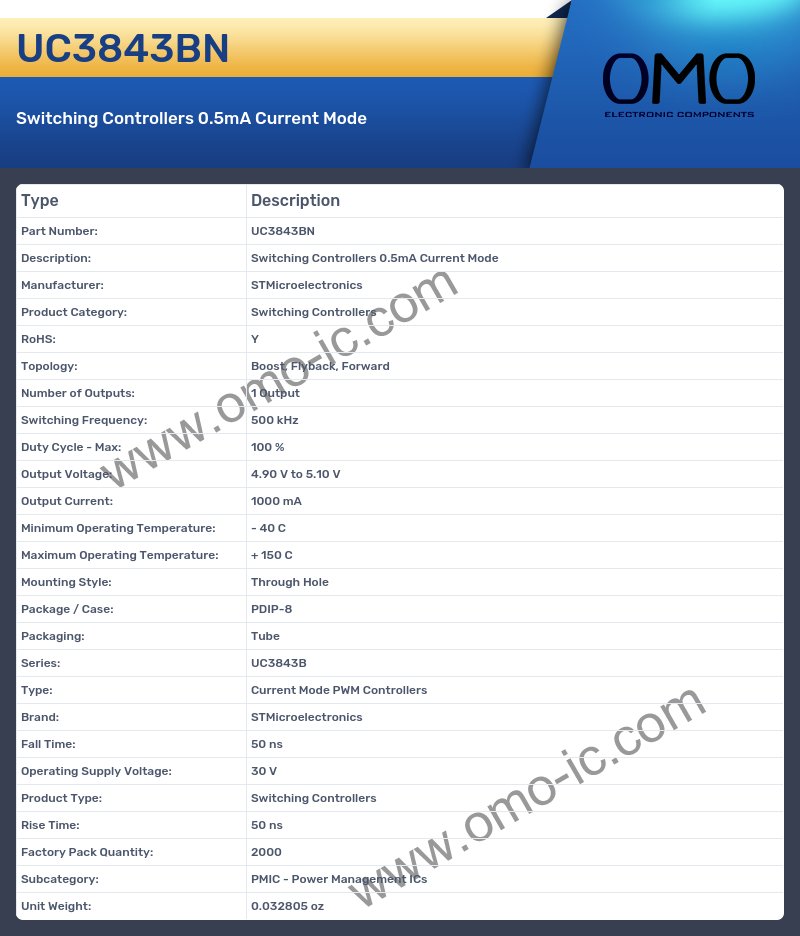

UC3843BN Specifications

• Manufacturer: STMicroelectronics
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 500 kHz
• Duty Cycle - Max: 100 %
• Output Voltage: 4.90 V to 5.10 V
• Output Current: 1000 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Series: UC3843B
• Type: Current Mode PWM Controllers
• Brand: STMicroelectronics
• Fall Time: 50 ns
• Operating Supply Voltage: 30 V
• Product Type: Switching Controllers
• Rise Time: 50 ns
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.032805 oz
