This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 15 V 2.3 A continuous drain current Rds On value of 90 mOhms Gate-Source Voltage: 2 V, - 15 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. 791 mW This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.75 mm. 4.9 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the PMOS Switches type. Texas Instruments is a trusted brand for quality electronics 5.5 ns fall time MOSFET product type Rise Time is 5.5 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 19 ns. The typical turn-on delay time is 6.5 ns. 1. 0.002677 oz of Unit Weight

TPS1101DR Image

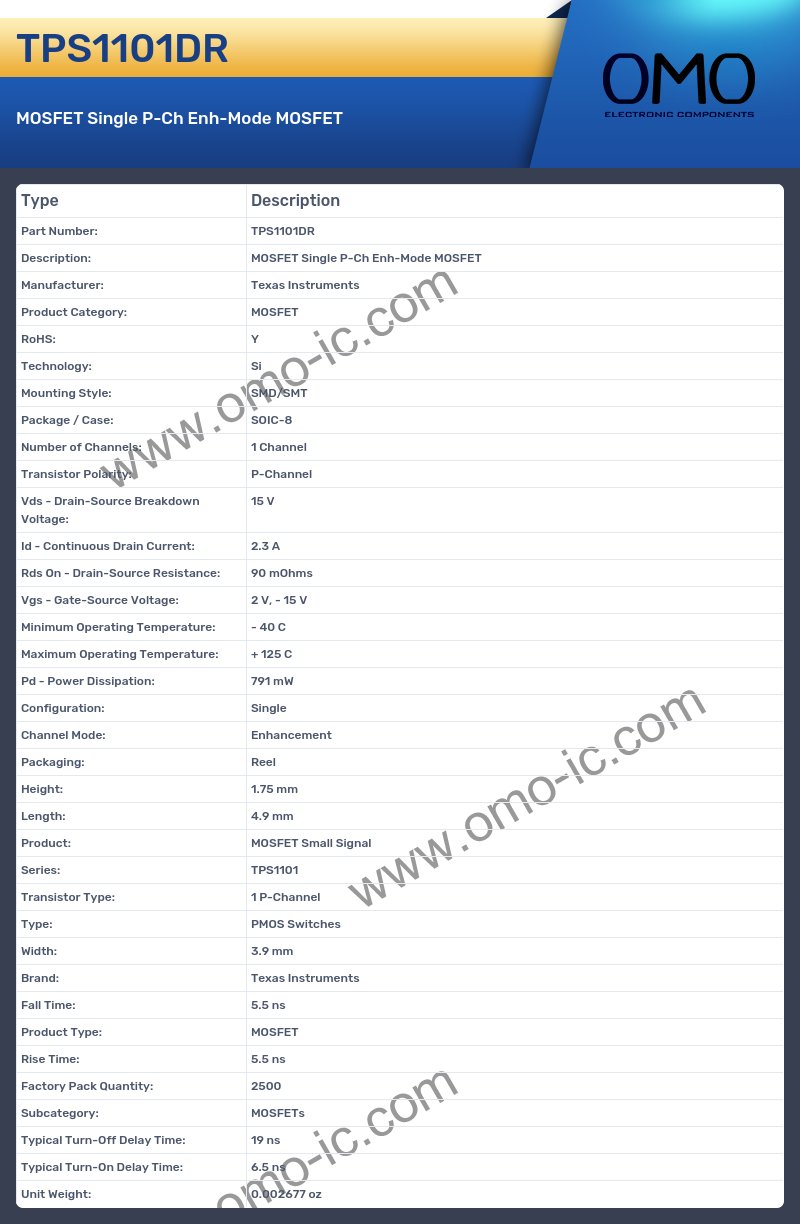

TPS1101DR Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 15 V
• Id - Continuous Drain Current: 2.3 A
• Rds On - Drain-Source Resistance: 90 mOhms
• Vgs - Gate-Source Voltage: 2 V, - 15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Pd - Power Dissipation: 791 mW
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.75 mm
• Length: 4.9 mm
• Product: MOSFET Small Signal
• Series: TPS1101
• Transistor Type: 1 P-Channel
• Type: PMOS Switches
• Width: 3.9 mm
• Brand: Texas Instruments
• Fall Time: 5.5 ns
• Product Type: MOSFET
• Rise Time: 5.5 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 19 ns
• Typical Turn-On Delay Time: 6.5 ns
• Unit Weight: 0.002677 oz
