TDA7296

TDA7296 Overview

This product is manufactured by STMicroelectronics. Audio Amplifiers Product Class is Class-AB Output power: 60 W The product can operate at a maximum temperature of Through Hole. This device belongs to the 1-Channel Mono type. Multiwatt-15 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.01 %. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 10.7 mm. Differential input type 19.6 mm long Output current: 5000 mA Supply Type: Dual STMicroelectronics is a trusted brand for quality electronics 80 dB is 11.5 dB. This product is equipped with 1 Channel for efficient performance. This product has an 500 nA of 5 uA for precise signal processing. 1. The maximum dual supply voltage is +/- 35 V. +/- 10 V minimum dual supply voltage Output signal type is Single 50000 mW Audio Amplifiers product type This product has a 75 dB of 50 dB, providing reliable power supply noise rejection. 500 of 100 Audio ICs as subcategory 1. 0.307201 oz of Unit Weight

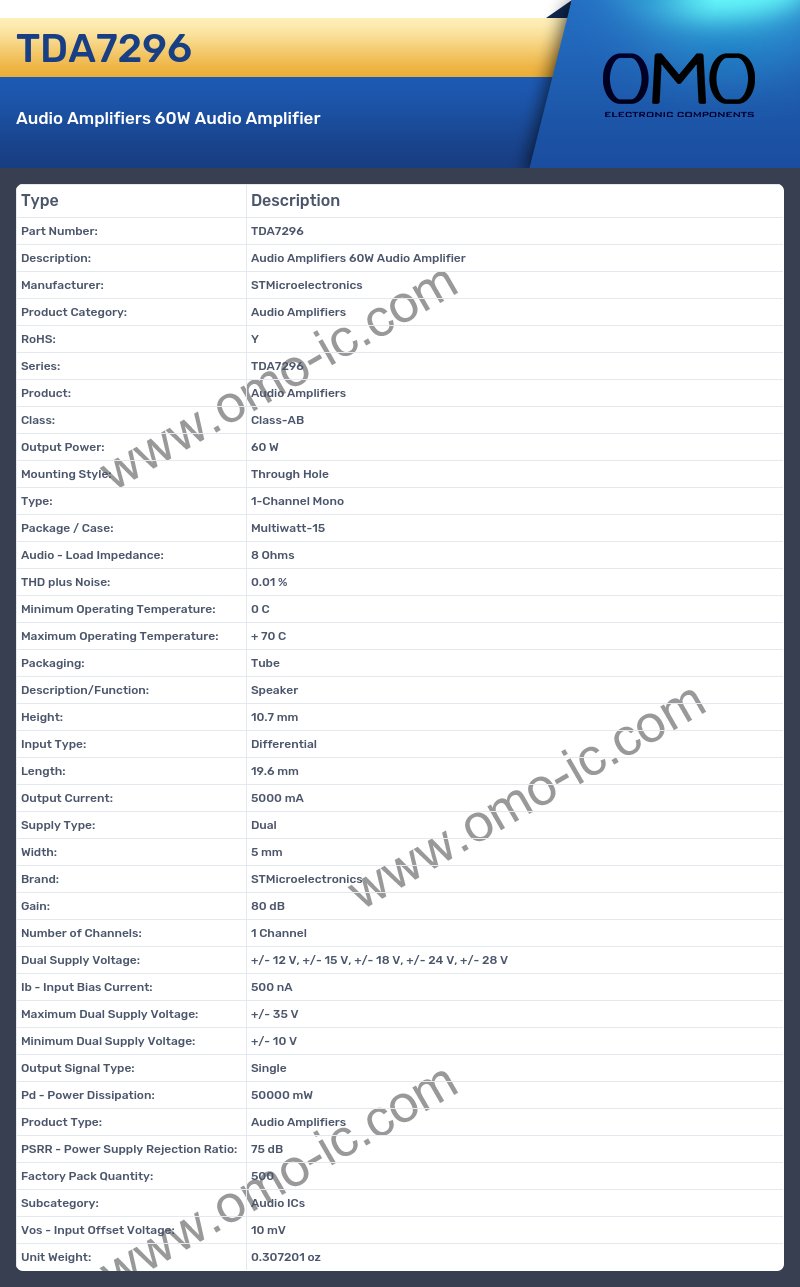

TDA7296 Image

TDA7296 Specifications

• Manufacturer: STMicroelectronics
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TDA7296
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 60 W
• Mounting Style: Through Hole
• Type: 1-Channel Mono
• Package / Case: Multiwatt-15
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.01 %
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Description/Function: Speaker
• Height: 10.7 mm
• Input Type: Differential
• Length: 19.6 mm
• Output Current: 5000 mA
• Supply Type: Dual
• Width: 5 mm
• Brand: STMicroelectronics
• Gain: 80 dB
• Number of Channels: 1 Channel
• Dual Supply Voltage: +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V
• Ib - Input Bias Current: 500 nA
• Maximum Dual Supply Voltage: +/- 35 V
• Minimum Dual Supply Voltage: +/- 10 V
• Output Signal Type: Single
• Pd - Power Dissipation: 50000 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 75 dB
• Factory Pack Quantity: 500
• Subcategory: Audio ICs
• Vos - Input Offset Voltage: 10 mV
• Unit Weight: 0.307201 oz
