TDA7269A

TDA7269A Overview

This product is manufactured by STMicroelectronics. Audio Amplifiers Product Class is Class-AB Output power: 14 W The product can operate at a maximum temperature of Through Hole. This device belongs to the 2-Channel Stereo type. Multiwatt-11 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.03 %. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The height of the product is 10.7 mm. Single input type 19.6 mm long Output current: 3000 mA Supply Type: Dual STMicroelectronics is a trusted brand for quality electronics 80 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. This product has an 500 nA of 5 uA for precise signal processing. 1. The maximum dual supply voltage is +/- 20 V. +/- 5 V minimum dual supply voltage 22 V operating supply voltage range Output signal type is Single 40000 mW Audio Amplifiers product type This product has a 60 dB of 50 dB, providing reliable power supply noise rejection. 500 of 100 Audio ICs as subcategory 1. 0.312316 oz of Unit Weight

TDA7269A Image

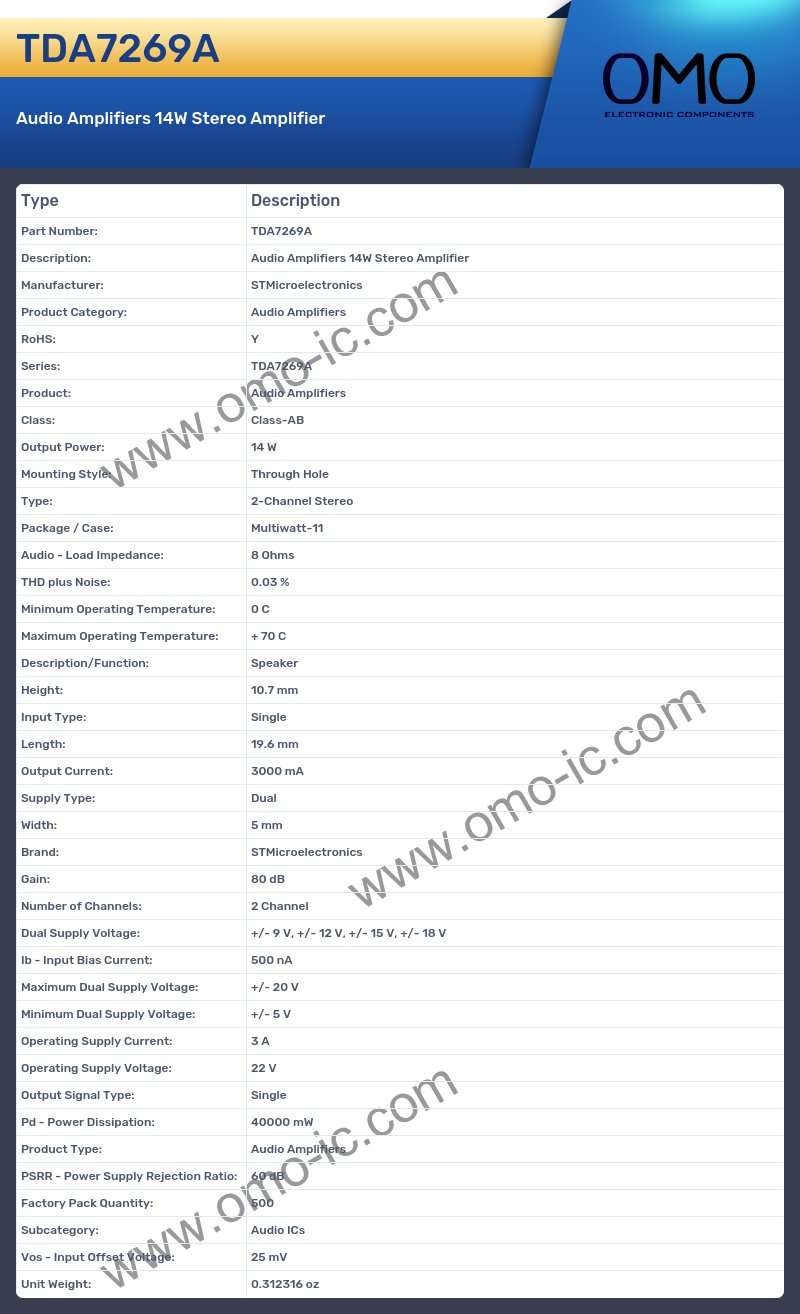

TDA7269A Specifications

• Manufacturer: STMicroelectronics
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TDA7269A
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 14 W
• Mounting Style: Through Hole
• Type: 2-Channel Stereo
• Package / Case: Multiwatt-11
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.03 %
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Description/Function: Speaker
• Height: 10.7 mm
• Input Type: Single
• Length: 19.6 mm
• Output Current: 3000 mA
• Supply Type: Dual
• Width: 5 mm
• Brand: STMicroelectronics
• Gain: 80 dB
• Number of Channels: 2 Channel
• Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
• Ib - Input Bias Current: 500 nA
• Maximum Dual Supply Voltage: +/- 20 V
• Minimum Dual Supply Voltage: +/- 5 V
• Operating Supply Current: 3 A
• Operating Supply Voltage: 22 V
• Output Signal Type: Single
• Pd - Power Dissipation: 40000 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 60 dB
• Factory Pack Quantity: 500
• Subcategory: Audio ICs
• Vos - Input Offset Voltage: 25 mV
• Unit Weight: 0.312316 oz
