STW70N10F4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 65 A continuous drain current Rds On value of 19.5 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 150 W This product has a Single configuration. The Channel Mode is set to Enhancement. Tube packaging for easy dispensing The height of the product is 20.15 mm. 15.75 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 20 ns fall time MOSFET product type Rise Time is 20 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 65 ns. The typical turn-on delay time is 30 ns. 1. 1.340411 oz of Unit Weight

STW70N10F4 Image

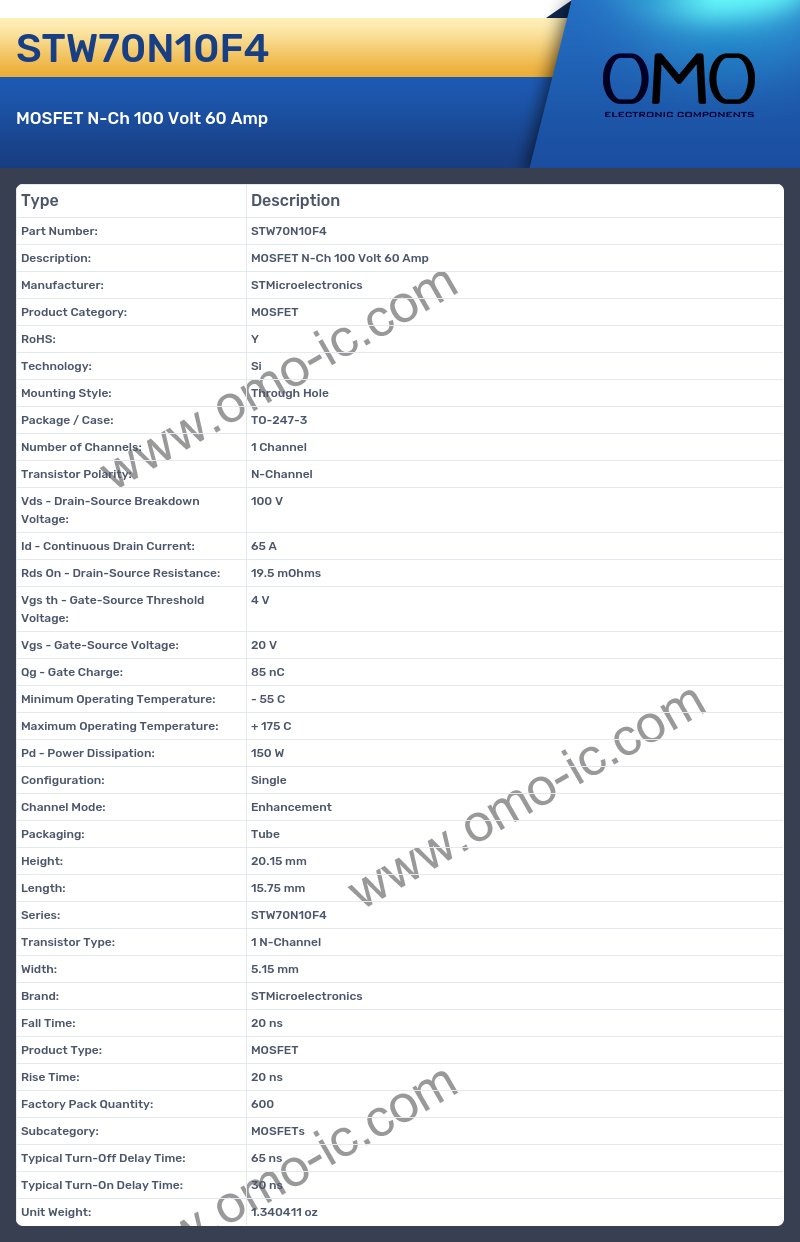

STW70N10F4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 65 A
• Rds On - Drain-Source Resistance: 19.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 85 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 150 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Tube
• Height: 20.15 mm
• Length: 15.75 mm
• Series: STW70N10F4
• Transistor Type: 1 N-Channel
• Width: 5.15 mm
• Brand: STMicroelectronics
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 65 ns
• Typical Turn-On Delay Time: 30 ns
• Unit Weight: 1.340411 oz
