STS5PF20V

STS5PF20V Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 5 A continuous drain current Rds On value of 80 mOhms Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.65 mm. 5 mm long The Transistor Type is 1 P-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 20 ns fall time MOSFET product type Rise Time is 47 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 39 ns. The typical turn-on delay time is 11 ns. 1. 0.002998 oz of Unit Weight

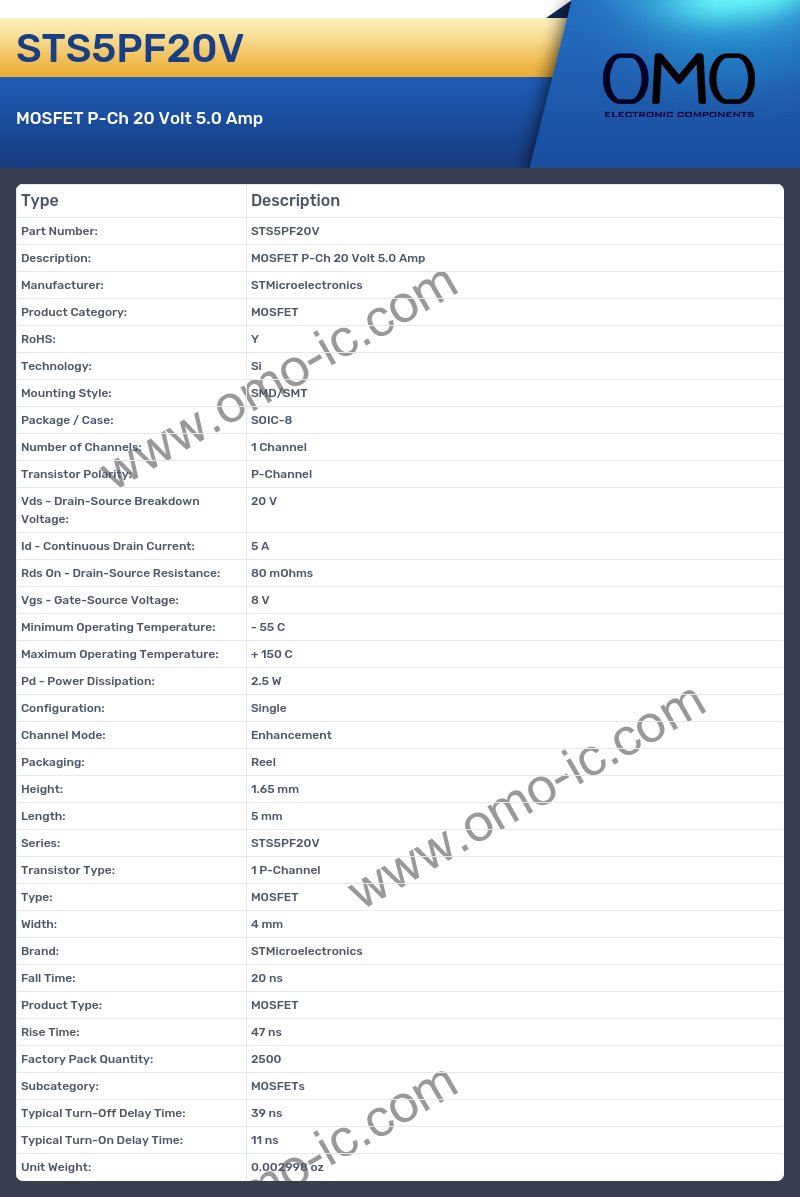

STS5PF20V Image

STS5PF20V Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 80 mOhms
• Vgs - Gate-Source Voltage: 8 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.65 mm
• Length: 5 mm
• Series: STS5PF20V
• Transistor Type: 1 P-Channel
• Type: MOSFET
• Width: 4 mm
• Brand: STMicroelectronics
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 47 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 39 ns
• Typical Turn-On Delay Time: 11 ns
• Unit Weight: 0.002998 oz
