STP80NF03L

STP80NF03L Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 80 A continuous drain current Rds On value of 3.5 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 65 C. The product can operate at a maximum temperature of + 175 C. 300 W This product has a Single configuration. The Channel Mode is set to Enhancement. Tube packaging for easy dispensing The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 95 ns fall time MOSFET product type Rise Time is 270 ns. 50 of 100 MOSFETs as subcategory Turn-off delay time is 1120 ns. The typical turn-on delay time is 30 ns. 1. 0.050717 oz of Unit Weight

STP80NF03L Image

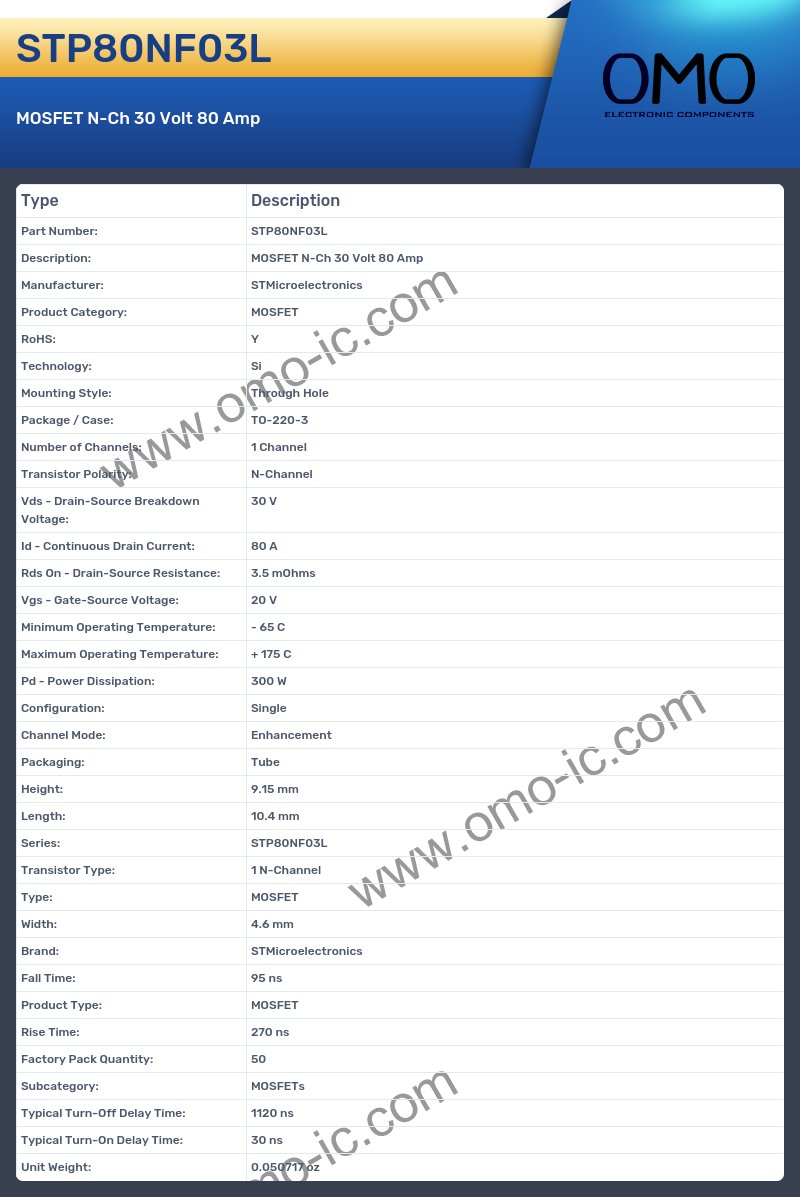

STP80NF03L Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 3.5 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 65 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 300 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Tube
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP80NF03L
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 95 ns
• Product Type: MOSFET
• Rise Time: 270 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 1120 ns
• Typical Turn-On Delay Time: 30 ns
• Unit Weight: 0.050717 oz
