STD12N60DM2AG

STD12N60DM2AG Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 650 V 10 A continuous drain current Rds On value of 440 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 110 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 9.5 ns fall time MOSFET product type Rise Time is 8 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 30 ns. The typical turn-on delay time is 15 ns.

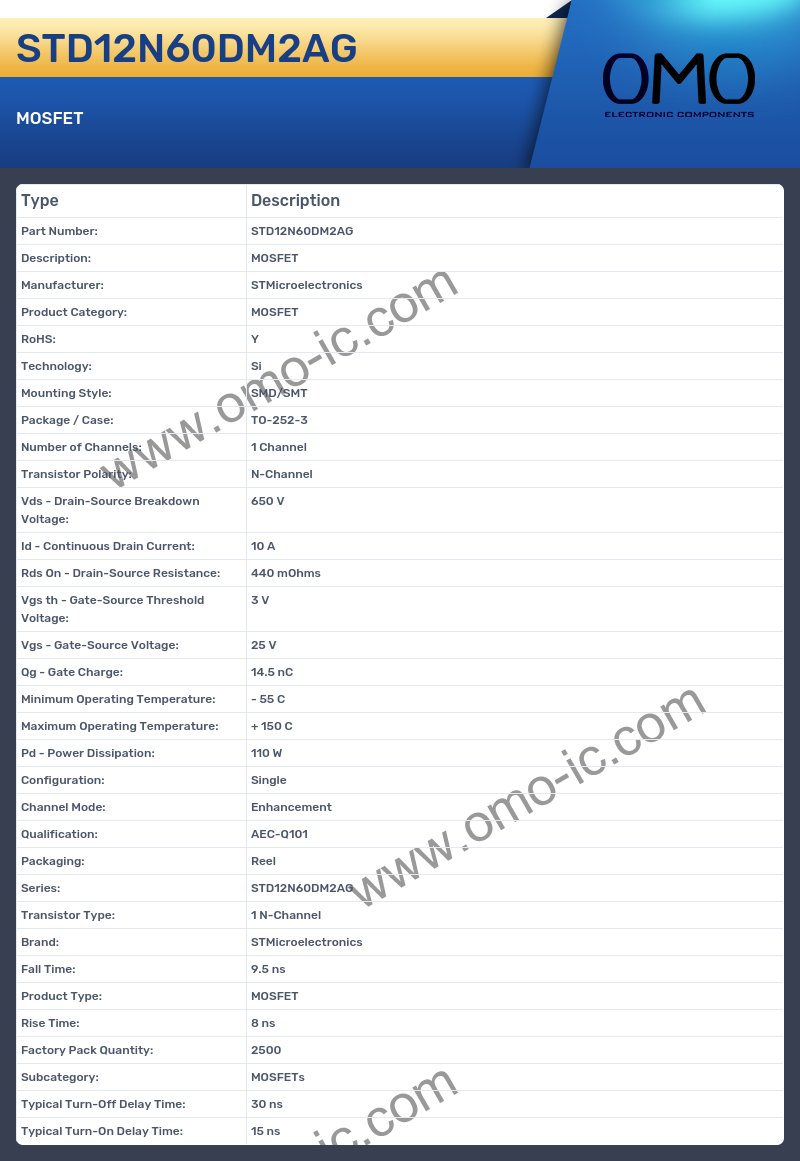

STD12N60DM2AG Image

STD12N60DM2AG Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 650 V
• Id - Continuous Drain Current: 10 A
• Rds On - Drain-Source Resistance: 440 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 14.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 110 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Packaging: Reel
• Series: STD12N60DM2AG
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 9.5 ns
• Product Type: MOSFET
• Rise Time: 8 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 30 ns
• Typical Turn-On Delay Time: 15 ns
