STB80N20M5

STB80N20M5 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-263-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 61 A continuous drain current Rds On value of 23 mOhms Gate-Source Threshold Voltage Range: 5 V Gate-Source Voltage: 25 V The product can operate at a maximum temperature of + 150 C. 190 W This product has a Single configuration. The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel. This device belongs to the N-Channel MDmesh V Power MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 1.6 S 176 ns fall time MOSFET product type Rise Time is 31 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 131 ns. The typical turn-on delay time is 66 ns. 1. 0.139332 oz of Unit Weight

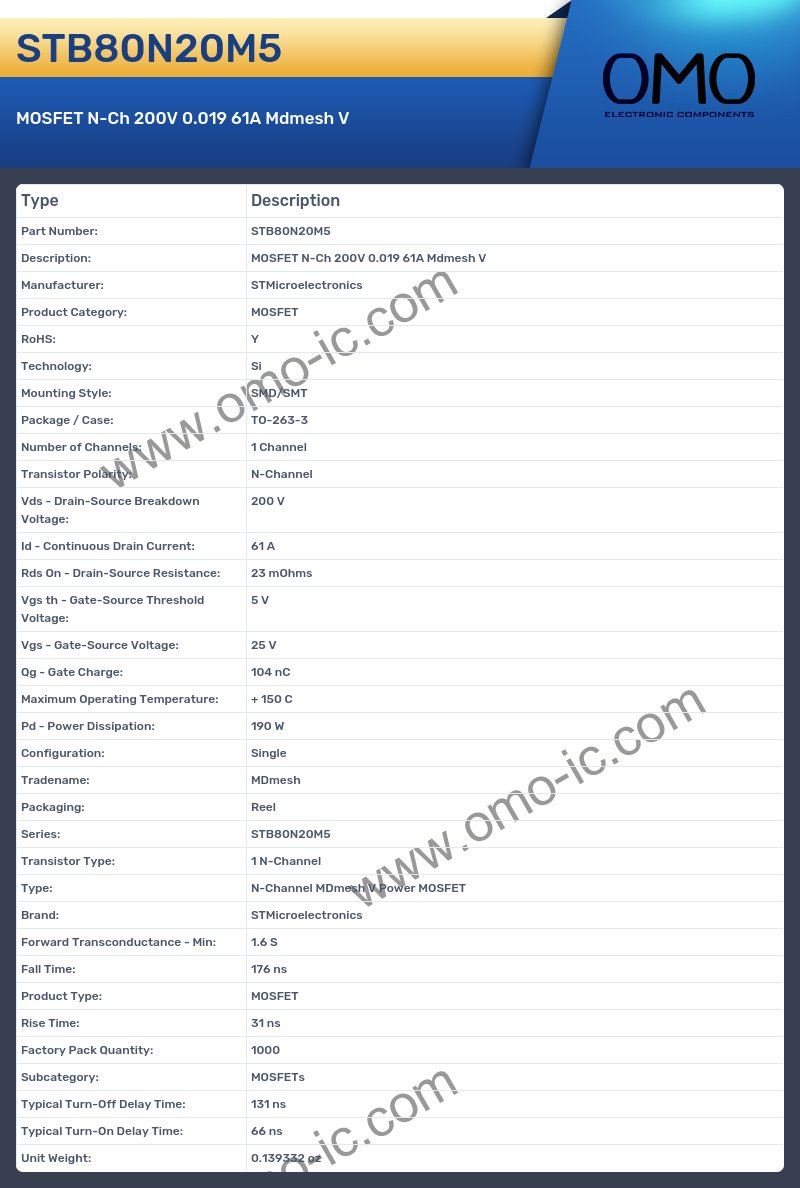

STB80N20M5 Image

STB80N20M5 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-263-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 61 A
• Rds On - Drain-Source Resistance: 23 mOhms
• Vgs th - Gate-Source Threshold Voltage: 5 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 104 nC
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 190 W
• Configuration: Single
• Tradename: MDmesh
• Packaging: Reel
• Series: STB80N20M5
• Transistor Type: 1 N-Channel
• Type: N-Channel MDmesh V Power MOSFET
• Brand: STMicroelectronics
• Forward Transconductance - Min: 1.6 S
• Fall Time: 176 ns
• Product Type: MOSFET
• Rise Time: 31 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 131 ns
• Typical Turn-On Delay Time: 66 ns
• Unit Weight: 0.139332 oz
