SSM2018PZ

SSM2018PZ Overview

This product is manufactured by Analog Devices Inc.. Audio Amplifiers Product Class is Class-AB The product can operate at a maximum temperature of Through Hole. This device belongs to the Complementary Gain type. PDIP-16 package/case type is utilized by this product. Load impedance of 9 kOhms is supported. THD plus Noise value is 0.006 %. Supply Voltage - Max: 18 V Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. Differential input type 20.07 mm long Supply Type: Single or Dual Analog Devices is a trusted brand for quality electronics 140 dB is 11.5 dB. Maximum supply current: 15 mA This product has an 1 uA of 5 uA for precise signal processing. 1. The maximum dual supply voltage is 18 V. 5 V minimum dual supply voltage 5 V to 18 V operating supply voltage range Output signal type is Amplifier 330 mW Audio Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Audio ICs as subcategory 1. 0.057419 oz of Unit Weight

SSM2018PZ Image

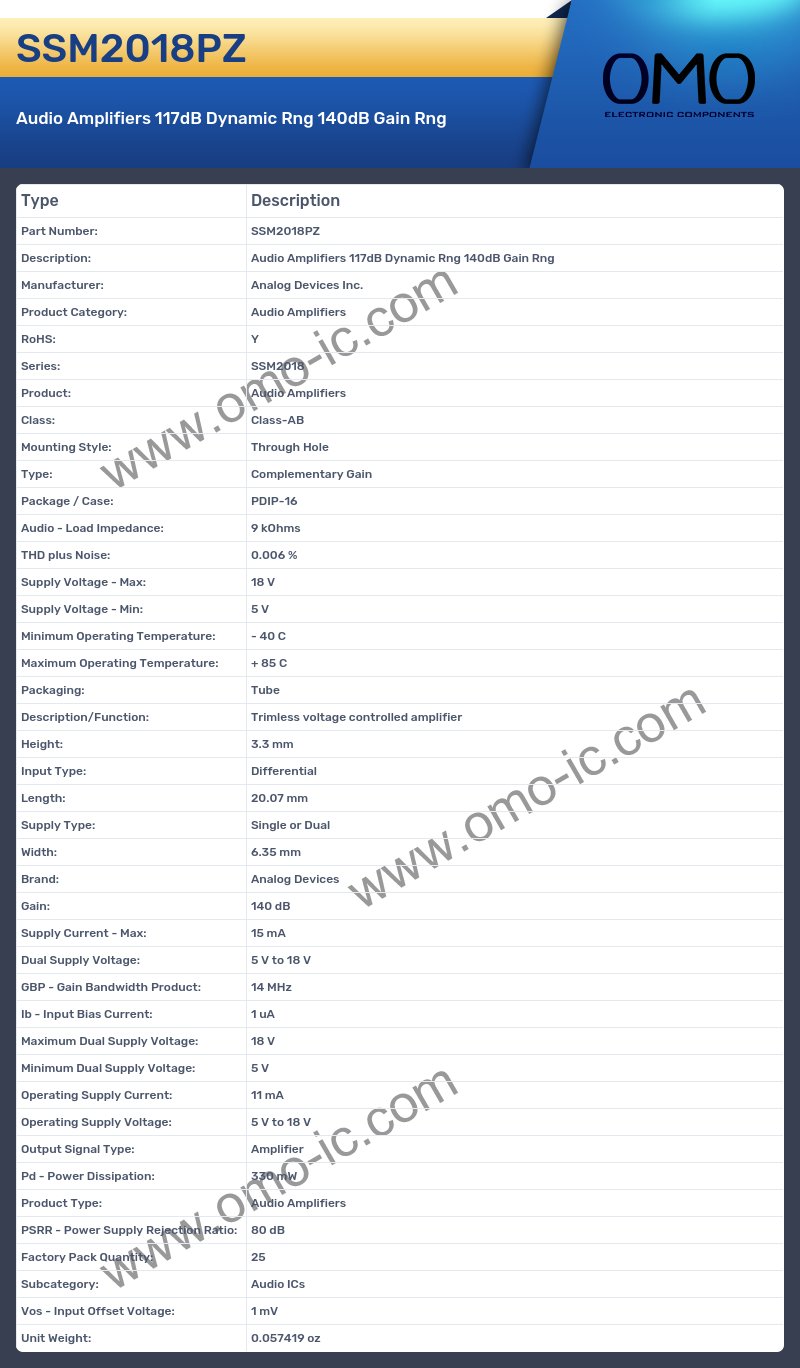

SSM2018PZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: SSM2018
• Product: Audio Amplifiers
• Class: Class-AB
• Mounting Style: Through Hole
• Type: Complementary Gain
• Package / Case: PDIP-16
• Audio - Load Impedance: 9 kOhms
• THD plus Noise: 0.006 %
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Description/Function: Trimless voltage controlled amplifier
• Height: 3.3 mm
• Input Type: Differential
• Length: 20.07 mm
• Supply Type: Single or Dual
• Width: 6.35 mm
• Brand: Analog Devices
• Gain: 140 dB
• Supply Current - Max: 15 mA
• Dual Supply Voltage: 5 V to 18 V
• GBP - Gain Bandwidth Product: 14 MHz
• Ib - Input Bias Current: 1 uA
• Maximum Dual Supply Voltage: 18 V
• Minimum Dual Supply Voltage: 5 V
• Operating Supply Current: 11 mA
• Operating Supply Voltage: 5 V to 18 V
• Output Signal Type: Amplifier
• Pd - Power Dissipation: 330 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• Factory Pack Quantity: 25
• Subcategory: Audio ICs
• Vos - Input Offset Voltage: 1 mV
• Unit Weight: 0.057419 oz
