| Mfr. #: | SN74S08DR |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Logic Gates Quad 2-input Positive-AND Gates |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | SN74S08DR Ficha de datos |
This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the 74S logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA The propagation delay time is 7.5 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a AND The height of the product is 1.58 mm. 8.65 mm long Texas Instruments is a trusted brand for quality electronics 2-Input AND. 4.75 V to 5.25 V operating supply voltage range Logic Gates product type 1 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

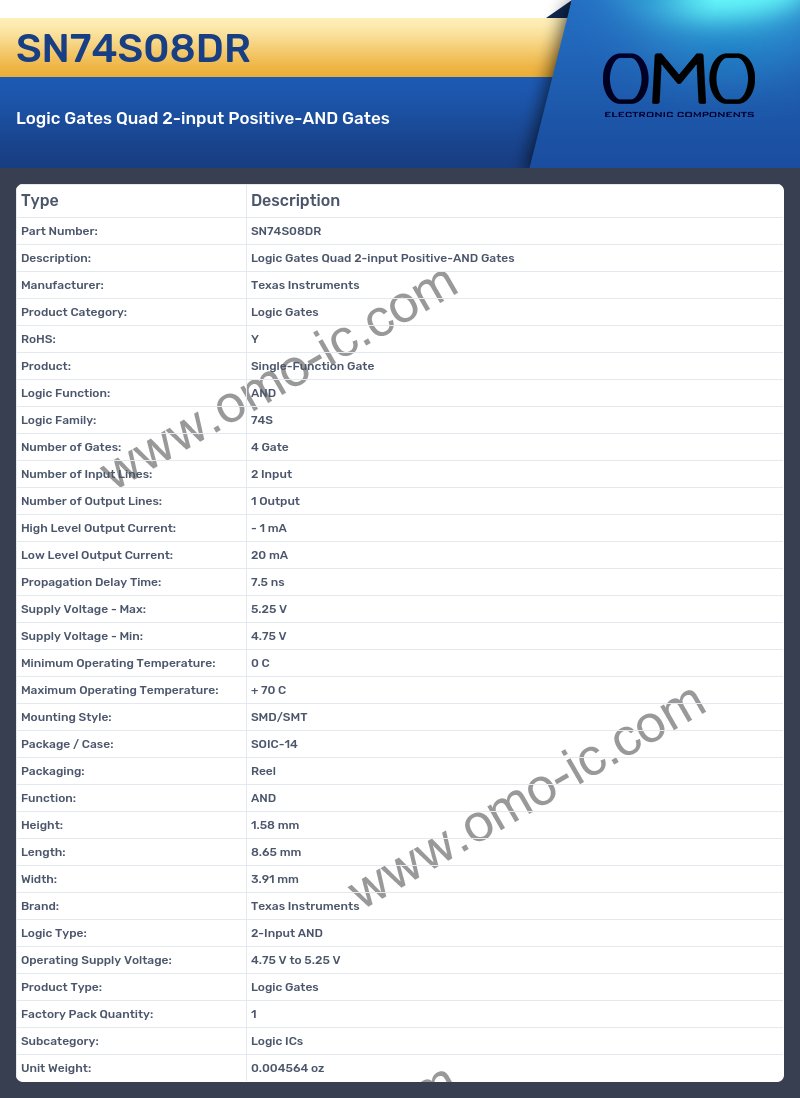

SN74S08DR Specifications
