SN74LVTH543DBR

SN74LVTH543DBR Overview

This product is manufactured by Texas Instruments. The product uses the 74LVTH logic family. The product's LVTTL input level ensures compatibility with a wide range of devices. LVTTL Output Level for flexible output configuration The output type is 3-State. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA The propagation delay time is 2.5 ns. Supply Voltage - Max: 3.6 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SSOP-24 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Latched Transceiver The height of the product is 1.95 mm. 8.2 mm long This product has 8 circuit. BiCMOS Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. Maximum supply current: 5 mA 2.7 V to 3.6 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 2000 of 100 Logic ICs as subcategory 1. 0.059966 oz of Unit Weight

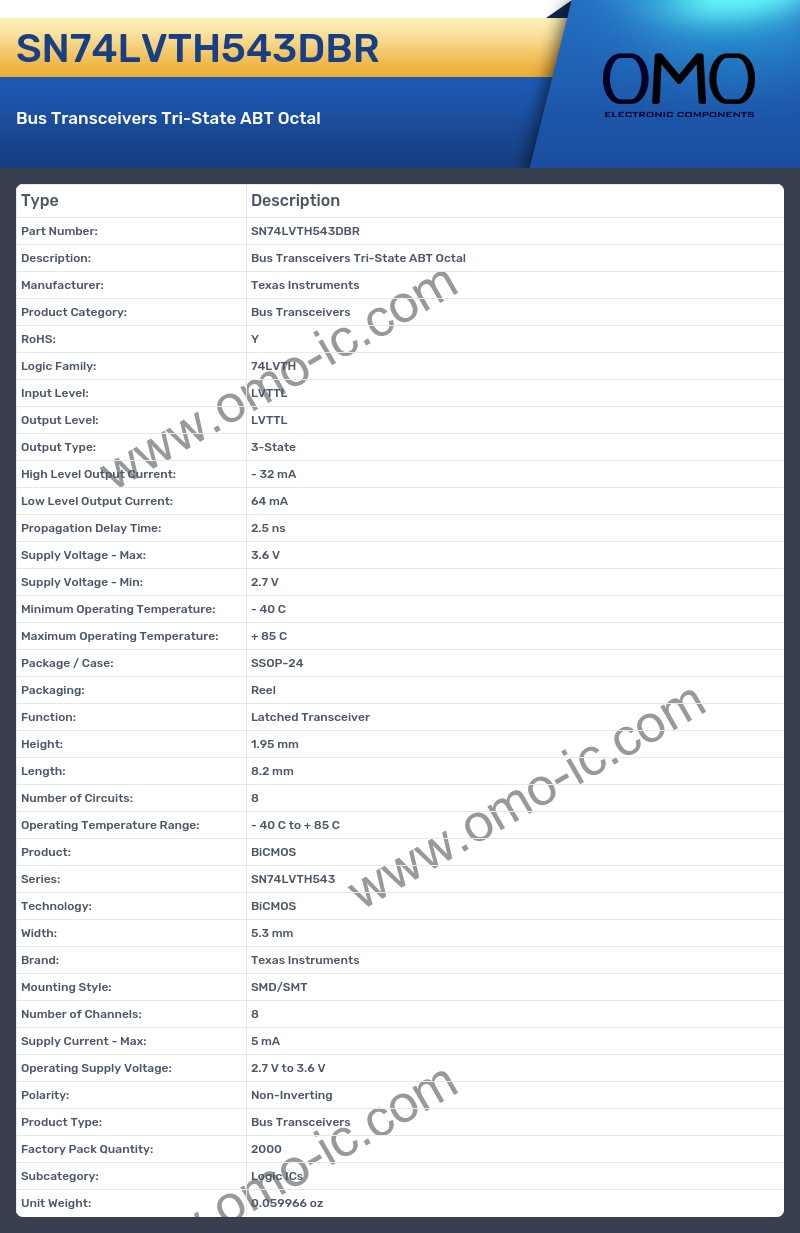

SN74LVTH543DBR Image

SN74LVTH543DBR Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: 74LVTH
• Input Level: LVTTL
• Output Level: LVTTL
• Output Type: 3-State
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Propagation Delay Time: 2.5 ns
• Supply Voltage - Max: 3.6 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SSOP-24
• Packaging: Reel
• Function: Latched Transceiver
• Height: 1.95 mm
• Length: 8.2 mm
• Number of Circuits: 8
• Operating Temperature Range: - 40 C to + 85 C
• Product: BiCMOS
• Series: SN74LVTH543
• Technology: BiCMOS
• Width: 5.3 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Supply Current - Max: 5 mA
• Operating Supply Voltage: 2.7 V to 3.6 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.059966 oz
