SN74LS86ADR

SN74LS86ADR Overview

This product is manufactured by Texas Instruments. Single-Function Gate XOR logic function The product uses the LS logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 16 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 0.8 mA The propagation delay time is 30 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a XOR The height of the product is 1.58 mm. TTL input type 8.65 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 2-Input Exclusive-OR. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

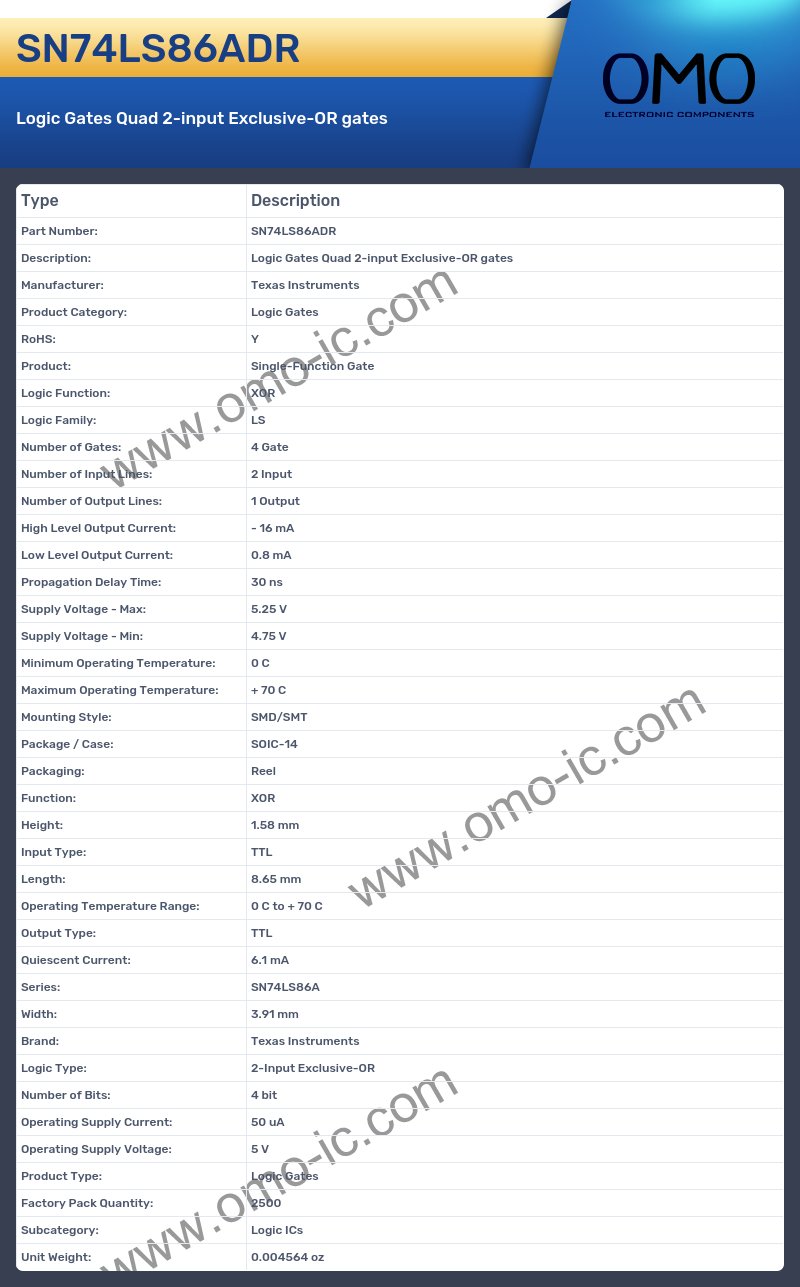

SN74LS86ADR Image

SN74LS86ADR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: XOR
• Logic Family: LS
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 16 mA
• Low Level Output Current: 0.8 mA
• Propagation Delay Time: 30 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: XOR
• Height: 1.58 mm
• Input Type: TTL
• Length: 8.65 mm
• Operating Temperature Range: 0 C to + 70 C
• Output Type: TTL
• Quiescent Current: 6.1 mA
• Series: SN74LS86A
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: 2-Input Exclusive-OR
• Number of Bits: 4 bit
• Operating Supply Current: 50 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
