SN74LS75N Overview

This product is manufactured by Texas Instruments. This product has 2 Circuit circuit. Bipolar. The product uses the LS logic family. Polarity type: Inverting/Non-Inverting This product has a - 400 uA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 27 ns at 5 V. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Transparent The height of the product is 4.57 mm. 19.3 mm long This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 4 Channels for efficient performance. 5 V operating supply voltage range Latches product type No Reset Reset Type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

SN74LS75N Image

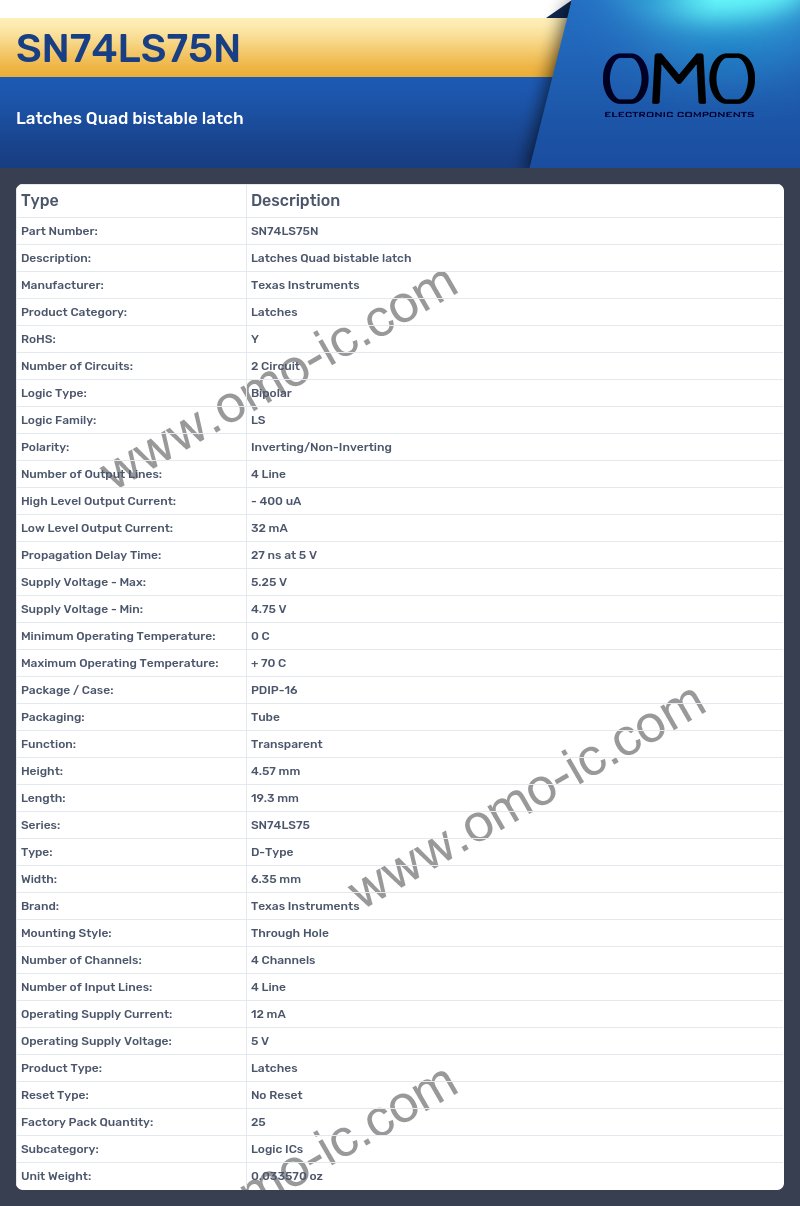

SN74LS75N Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 2 Circuit
• Logic Type: Bipolar
• Logic Family: LS
• Polarity: Inverting/Non-Inverting
• Number of Output Lines: 4 Line
• High Level Output Current: - 400 uA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 27 ns at 5 V
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Transparent
• Height: 4.57 mm
• Length: 19.3 mm
• Series: SN74LS75
• Type: D-Type
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 4 Channels
• Number of Input Lines: 4 Line
• Operating Supply Current: 12 mA
• Operating Supply Voltage: 5 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
