SN74LS21NS

SN74LS21NS Overview

This product is manufactured by ON Semiconductor. Single-Function Gate AND logic function The product boasts a whopping 1 Gate gates for unparalleled processing power. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 2.7 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SC-88A-5 package/case type is utilized by this product. Reel packaging for easy dispensing Output Voltage is 5.5 V ON Semiconductor is a trusted brand for quality electronics 190 mW Logic Gates product type 3000 of 100 Logic ICs as subcategory

SN74LS21NS Image

SN74LS21NS Specifications

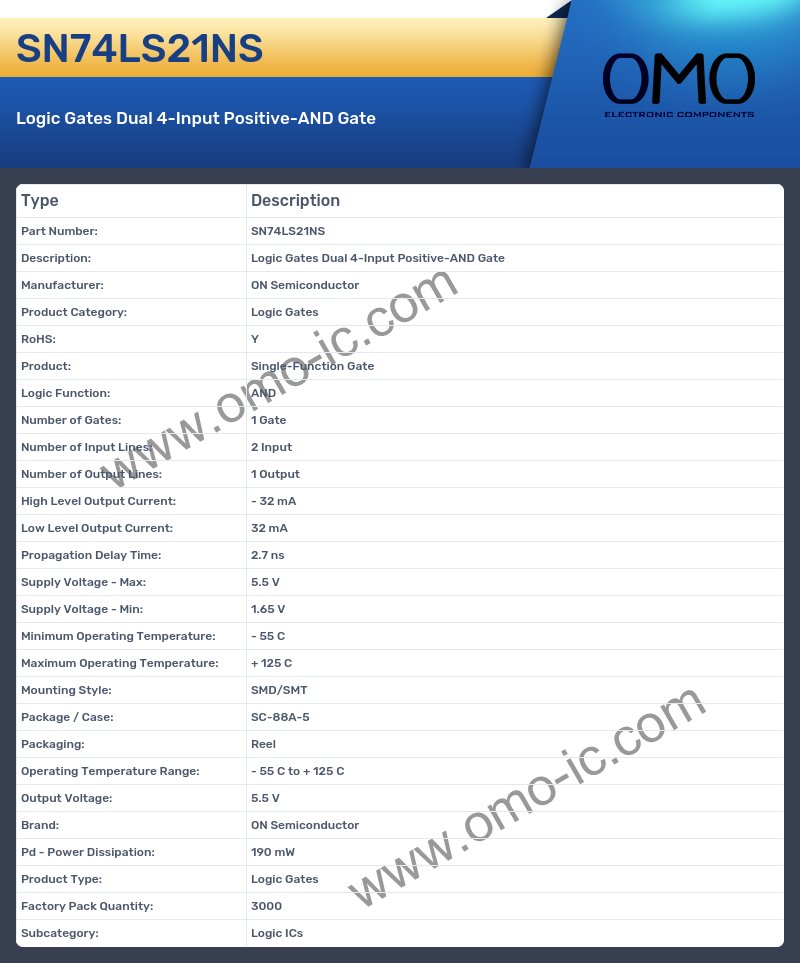

• Manufacturer: ON Semiconductor
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Number of Gates: 1 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 32 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 2.7 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SC-88A-5
• Packaging: Reel
• Operating Temperature Range: - 55 C to + 125 C
• Output Voltage: 5.5 V
• Brand: ON Semiconductor
• Pd - Power Dissipation: 190 mW
• Product Type: Logic Gates
• Factory Pack Quantity: 3000
• Subcategory: Logic ICs
