SN74HC259DRG4

SN74HC259DRG4 Overview

This product is manufactured by Texas Instruments. This product has 1 Circuit circuit. CMOS. The product uses the HC logic family. Polarity type: Non-Inverting This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 130 ns at 2 V, 26 ns at 4.5 V, 22 ns at 6 V. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Addressable The height of the product is 1.58 mm. 9.9 mm long This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 Channels for efficient performance. 5 V operating supply voltage range Latches product type Master Reset Reset Type 2500 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN74HC259DRG4 Image

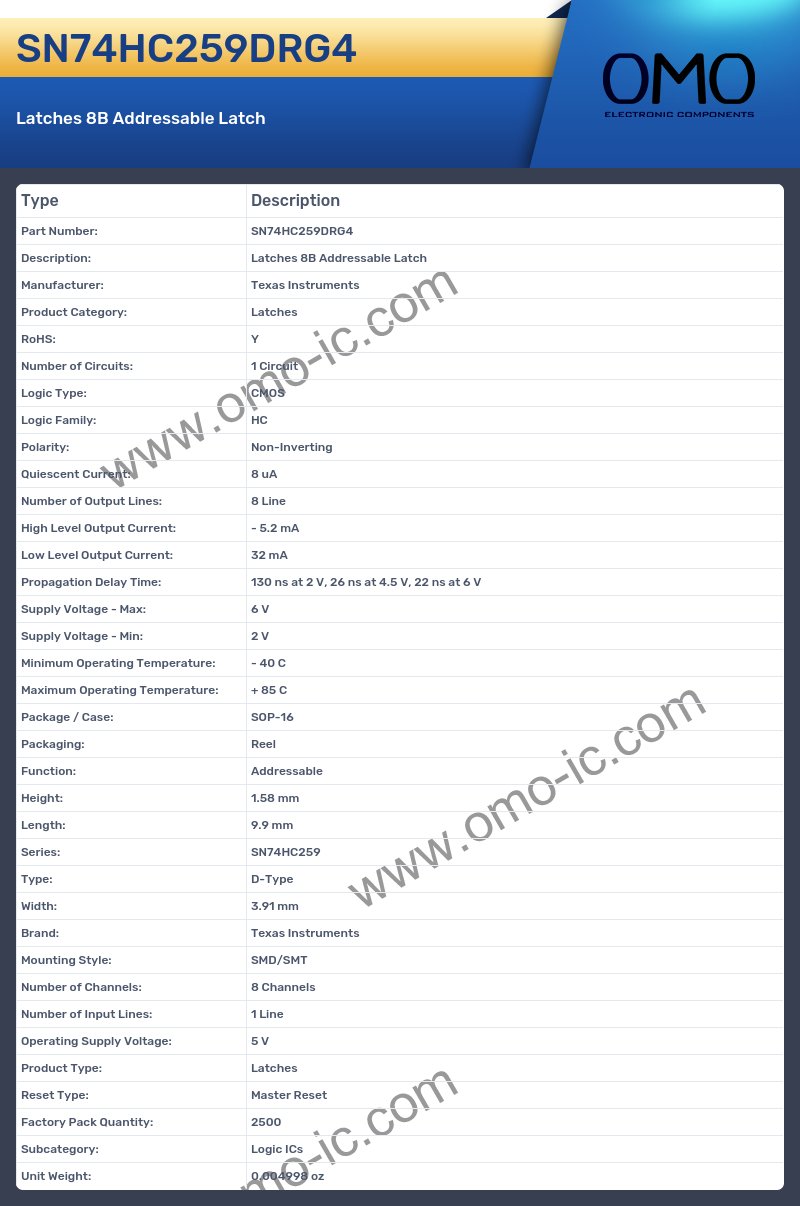

SN74HC259DRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 1 Circuit
• Logic Type: CMOS
• Logic Family: HC
• Polarity: Non-Inverting
• Quiescent Current: 8 uA
• Number of Output Lines: 8 Line
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 130 ns at 2 V, 26 ns at 4.5 V, 22 ns at 6 V
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOP-16
• Packaging: Reel
• Function: Addressable
• Height: 1.58 mm
• Length: 9.9 mm
• Series: SN74HC259
• Type: D-Type
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8 Channels
• Number of Input Lines: 1 Line
• Operating Supply Voltage: 5 V
• Product Type: Latches
• Reset Type: Master Reset
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
