SN74F153NSR

SN74F153NSR Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the F logic family. The propagation delay time is 12 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SO-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Dual 1-of-4 Data The height of the product is 1.95 mm. - 1.2 V to 7.0 V Input Voltage 10.3 mm long This product has Dual circuit. Output current: 40 mA Output Voltage is - 0.5 V to Vcc + 0.5 V Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 20 mA The Maximum Clock Frequency of this product is 70 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 2000 of 100 Logic ICs as subcategory 1. 0.007079 oz of Unit Weight

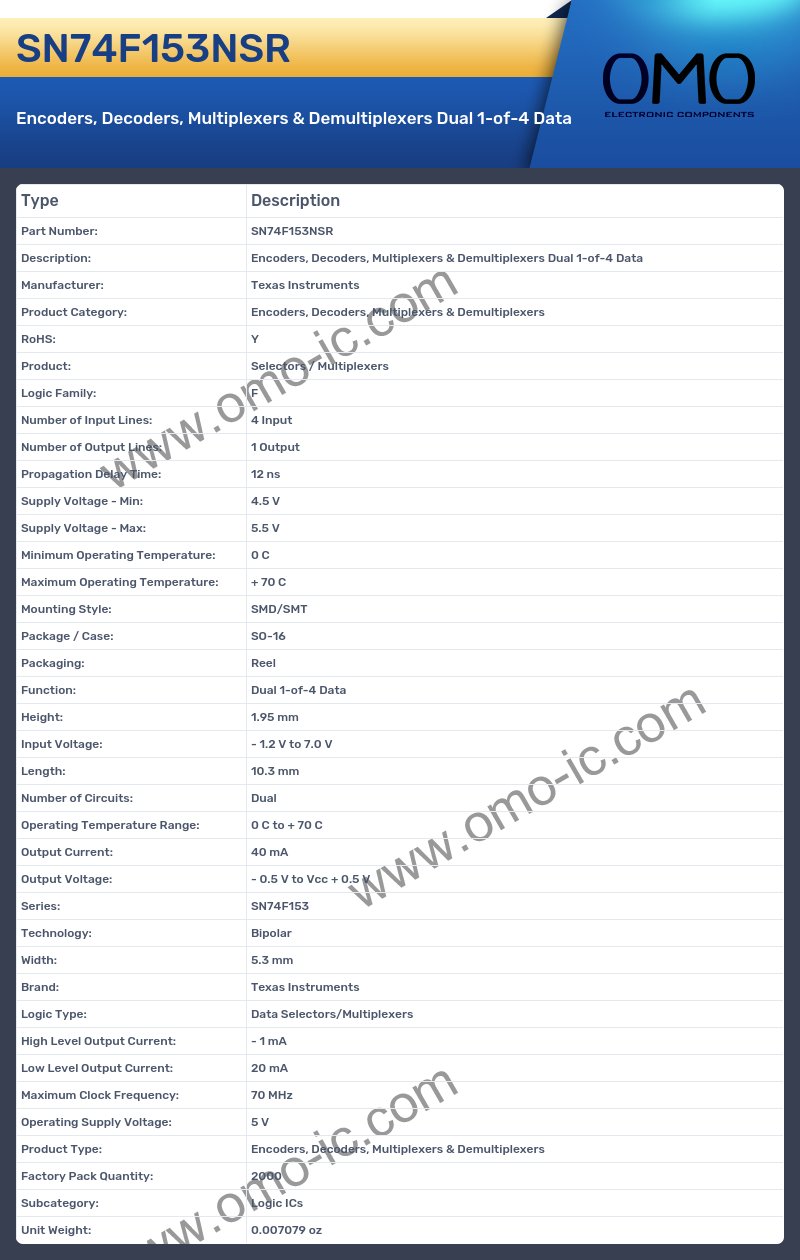

SN74F153NSR Image

SN74F153NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Selectors / Multiplexers
• Logic Family: F
• Number of Input Lines: 4 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 12 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SO-16
• Packaging: Reel
• Function: Dual 1-of-4 Data
• Height: 1.95 mm
• Input Voltage: - 1.2 V to 7.0 V
• Length: 10.3 mm
• Number of Circuits: Dual
• Operating Temperature Range: 0 C to + 70 C
• Output Current: 40 mA
• Output Voltage: - 0.5 V to Vcc + 0.5 V
• Series: SN74F153
• Technology: Bipolar
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• High Level Output Current: - 1 mA
• Low Level Output Current: 20 mA
• Maximum Clock Frequency: 70 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.007079 oz
