SN74AHC595PW Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit TSSOP-16 package/case type is utilized by this product. The product uses the 74AH logic family. CMOS. The output type is 3-State. The propagation delay time is 16.5 ns, 10.2 ns. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing t's a Shift Register Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 2 V to 5.5 V operating supply voltage range Counter Shift Registers product type 90 of 100 Logic ICs as subcategory 1. 0.002183 oz of Unit Weight

SN74AHC595PW Image

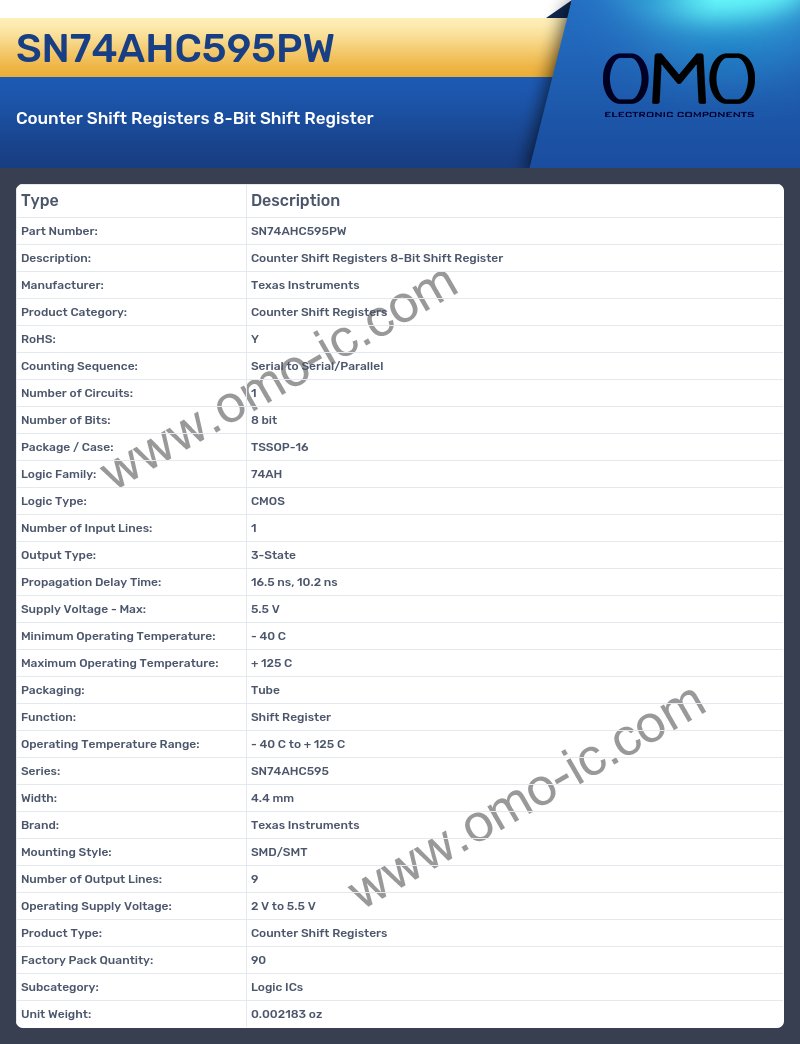

SN74AHC595PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: TSSOP-16
• Logic Family: 74AH
• Logic Type: CMOS
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 16.5 ns, 10.2 ns
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Function: Shift Register
• Operating Temperature Range: - 40 C to + 125 C
• Series: SN74AHC595
• Width: 4.4 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Operating Supply Voltage: 2 V to 5.5 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002183 oz
