SN74AC563N

SN74AC563N Overview

This product is manufactured by Texas Instruments. This product has 8 Circuit circuit. Inverting. The product uses the AC logic family. Polarity type: Inverting This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 13 ns, 10 ns. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Transparent The height of the product is 4.57 mm. 24.33 mm long The output type is 3-State. This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 8 Channels for efficient performance. 2.5 V, 3.3 V, 5 V operating supply voltage range Latches product type No Reset Reset Type 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight

SN74AC563N Image

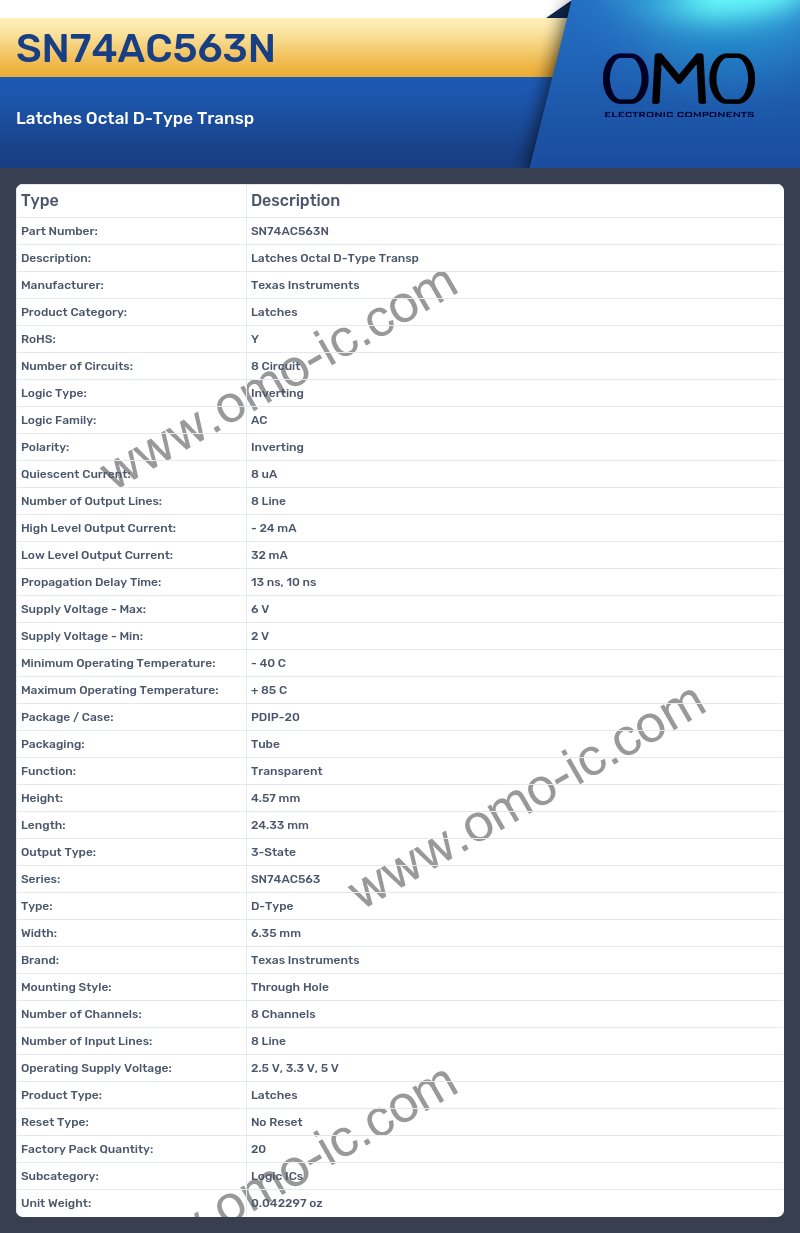

SN74AC563N Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 8 Circuit
• Logic Type: Inverting
• Logic Family: AC
• Polarity: Inverting
• Quiescent Current: 8 uA
• Number of Output Lines: 8 Line
• High Level Output Current: - 24 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 13 ns, 10 ns
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Transparent
• Height: 4.57 mm
• Length: 24.33 mm
• Output Type: 3-State
• Series: SN74AC563
• Type: D-Type
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 8 Channels
• Number of Input Lines: 8 Line
• Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.042297 oz
