SN74ABT534APW

SN74ABT534APW Overview

This product is manufactured by Texas Instruments. This product has 8 circuit. The product uses the 74AB logic family. D-Type Edge Triggered Flip-Flop. Polarity type: Inverting Single-Ended input type The output type is Single-Ended. The propagation delay time is 6.7 ns. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 1.15 mm. 6.5 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 8 for efficient performance. 4.5 V to 5.5 V operating supply voltage range Flip Flops product type 1 of 100 Logic ICs as subcategory 1. 0.006737 oz of Unit Weight

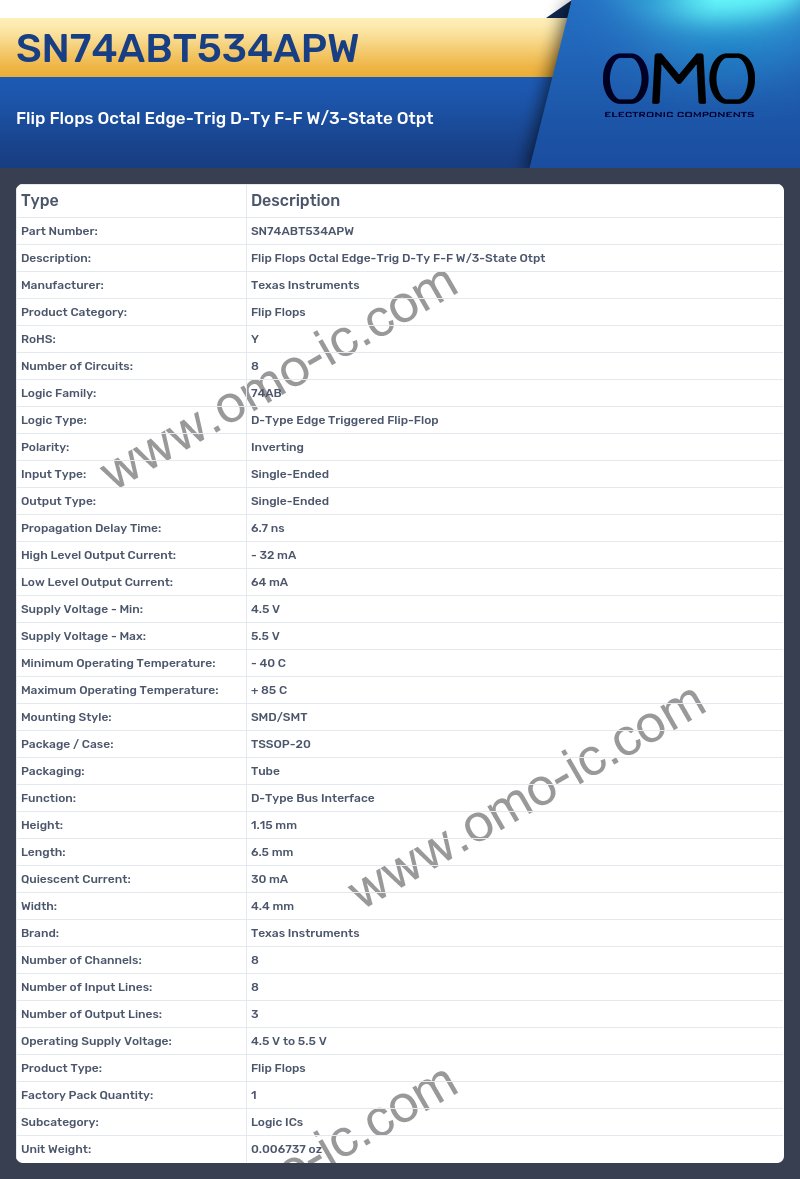

SN74ABT534APW Image

SN74ABT534APW Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 8
• Logic Family: 74AB
• Logic Type: D-Type Edge Triggered Flip-Flop
• Polarity: Inverting
• Input Type: Single-Ended
• Output Type: Single-Ended
• Propagation Delay Time: 6.7 ns
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Function: D-Type Bus Interface
• Height: 1.15 mm
• Length: 6.5 mm
• Quiescent Current: 30 mA
• Width: 4.4 mm
• Brand: Texas Instruments
• Number of Channels: 8
• Number of Input Lines: 8
• Number of Output Lines: 3
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Flip Flops
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.006737 oz
