| Mfr. #: | SN7402N |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Logic Gates Quad 2-input Positive-NOR gates |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | SN7402N Ficha de datos |
This product is manufactured by Texas Instruments. Single-Function Gate NOR logic function The product uses the TTL logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 16 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 0.8 mA The propagation delay time is 22 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a NOR The height of the product is 4.57 mm. TTL input type 19.3 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 2-Input NOR. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 25 of 100 Logic ICs as subcategory 1. 0.032734 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

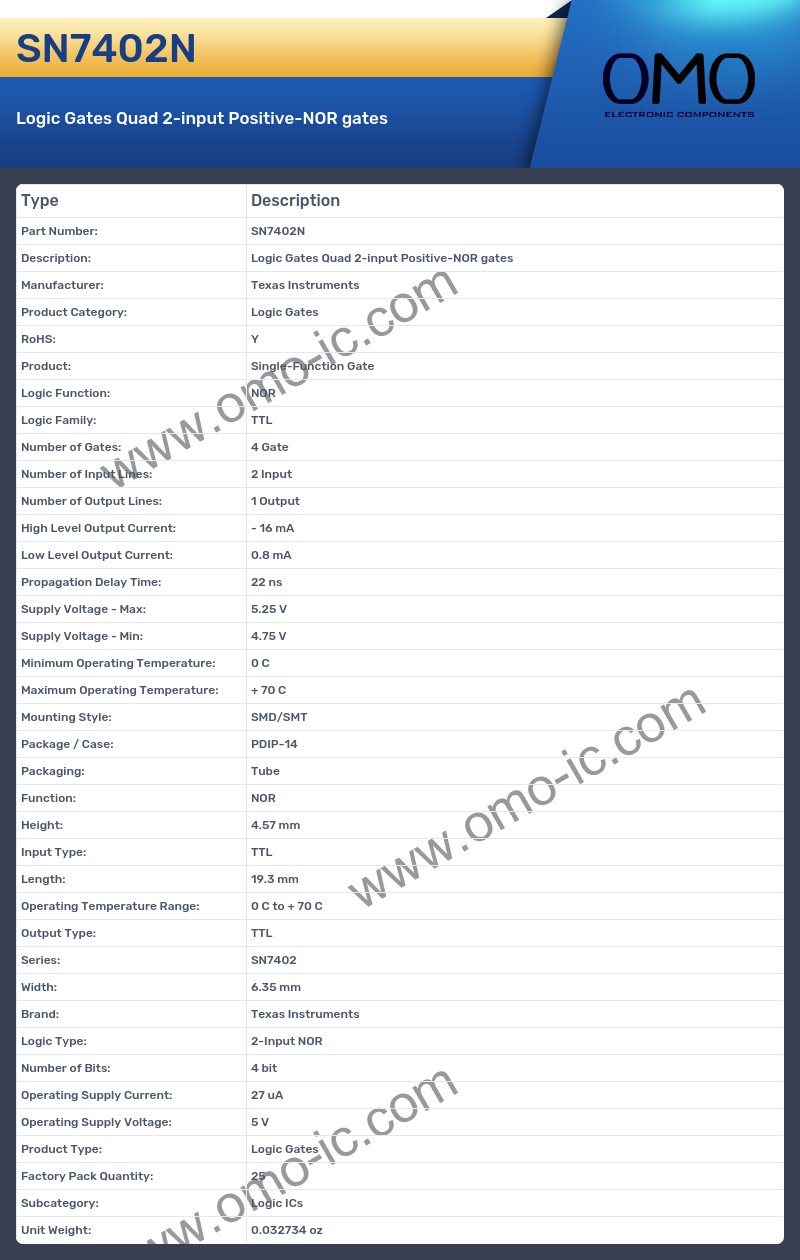

SN7402N Specifications
A: What is the Manufacturer of the product?
Q: The Manufacturer of the product is Texas Instruments.
A: What is the Product of the product?
Q: The Product of the product is Single-Function Gate.
A: What is the Logic Function of the product?
Q: The Logic Function of the product is NOR.
A: At what frequency does the Logic Family?
Q: The product Logic Family is TTL.
A: What is the Number of Gates of the product?
Q: The Number of Gates of the product is 4 Gate.
A: What is the High Level Output Current of the product?
Q: The High Level Output Current of the product is - 16 mA.
A: Is the cutoff frequency of the product Low Level Output Current?
Q: Yes, the product's Low Level Output Current is indeed 0.8 mA
A: Is the cutoff frequency of the product Propagation Delay Time?
Q: Yes, the product's Propagation Delay Time is indeed 22 ns
A: At what frequency does the Supply Voltage - Max?
Q: The product Supply Voltage - Max is 5.25 V.
A: At what frequency does the Supply Voltage - Min?
Q: The product Supply Voltage - Min is 4.75 V.
A: Is the cutoff frequency of the product Minimum Operating Temperature?
Q: Yes, the product's Minimum Operating Temperature is indeed 0 C
A: At what frequency does the Maximum Operating Temperature?
Q: The product Maximum Operating Temperature is + 70 C.
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: At what frequency does the Package / Case?
Q: The product Package / Case is PDIP-14.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Function of the product?
Q: The Function of the product is NOR.
A: At what frequency does the Height?
Q: The product Height is 4.57 mm.
A: Is the cutoff frequency of the product Input Type?
Q: Yes, the product's Input Type is indeed TTL
A: At what frequency does the Length?
Q: The product Length is 19.3 mm.
A: Is the cutoff frequency of the product Output Type?
Q: Yes, the product's Output Type is indeed TTL
A: At what frequency does the Brand?
Q: The product Brand is Texas Instruments.
A: At what frequency does the Logic Type?
Q: The product Logic Type is 2-Input NOR.
A: At what frequency does the Number of Bits?
Q: The product Number of Bits is 4 bit.
A: What is the Operating Supply Voltage of the product?
Q: The Operating Supply Voltage of the product is 5 V.
A: Is the cutoff frequency of the product Product Type?
Q: Yes, the product's Product Type is indeed Logic Gates
A: At what frequency does the Factory Pack Quantity?
Q: The product Factory Pack Quantity is 25.
A: What is the Subcategory of the product?
Q: The Subcategory of the product is Logic ICs.
A: At what frequency does the Unit Weight?
Q: The product Unit Weight is 0.032734 oz.
