PIC16F684T-I/SL

PIC16F684T-I/SL Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 2 kB. The Data RAM Size of this product is 128 B. The ADC Resolution of this product is 10 bit. 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.25 mm. 8.65 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The SRAM. The Data ROM Size is 256 B. EEPROM is the data ROM type. The product has 8 ADC channels. 8-bit Microcontrollers - MCU product type 2600 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The product's PIC is Blue Gecko. 1. 0.011923 oz of Unit Weight

PIC16F684T-I/SL Image

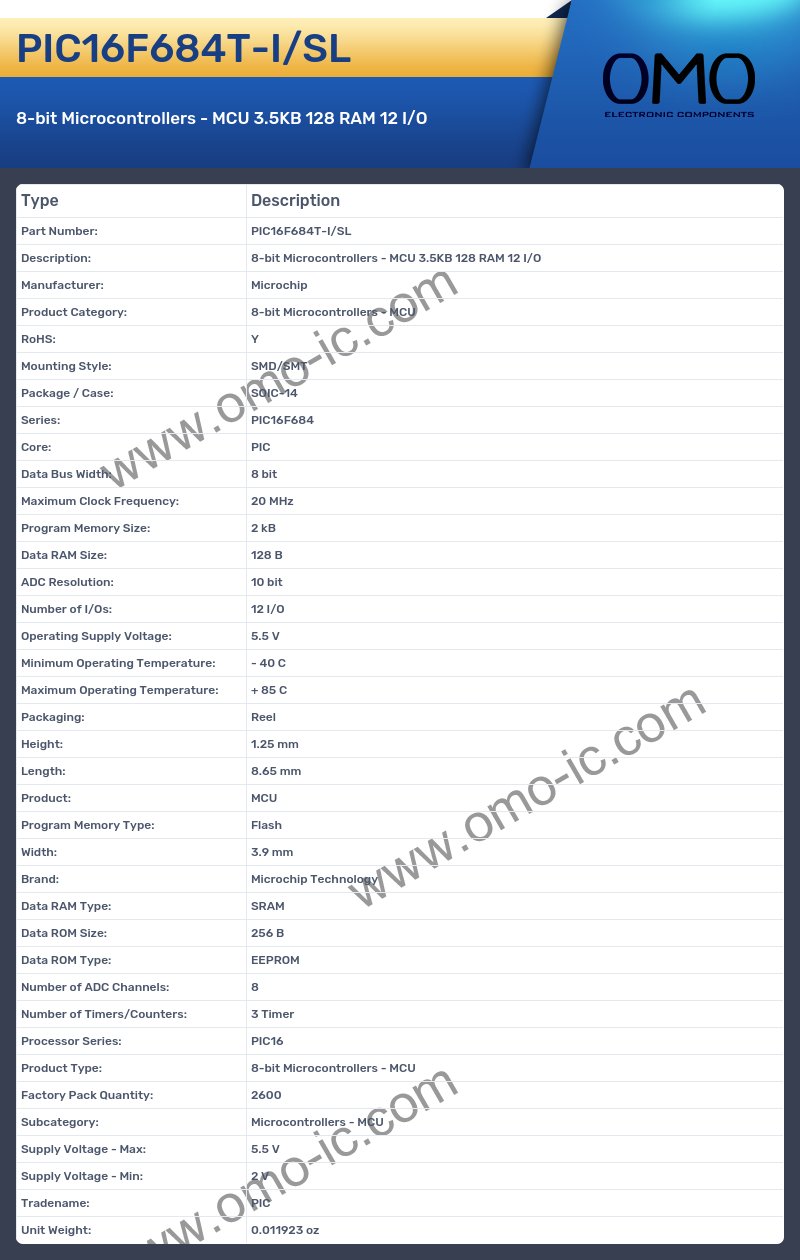

PIC16F684T-I/SL Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Series: PIC16F684
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 2 kB
• Data RAM Size: 128 B
• ADC Resolution: 10 bit
• Number of I/Os: 12 I/O
• Operating Supply Voltage: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.25 mm
• Length: 8.65 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 3.9 mm
• Brand: Microchip Technology
• Data RAM Type: SRAM
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Number of ADC Channels: 8
• Number of Timers/Counters: 3 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 2600
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Tradename: PIC
• Unit Weight: 0.011923 oz
