PIC16F684T-E/SL

PIC16F684T-E/SL Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 3.5 kB. The Data RAM Size of this product is 128 B. The ADC Resolution of this product is 10 bit. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.25 mm. 8.65 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The Data ROM Size is 256 B. Flash is the data ROM type. The product has 8 ADC channels. 8-bit Microcontrollers - MCU product type 2600 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The product's PIC is Blue Gecko. 1. 0.011923 oz of Unit Weight

PIC16F684T-E/SL Image

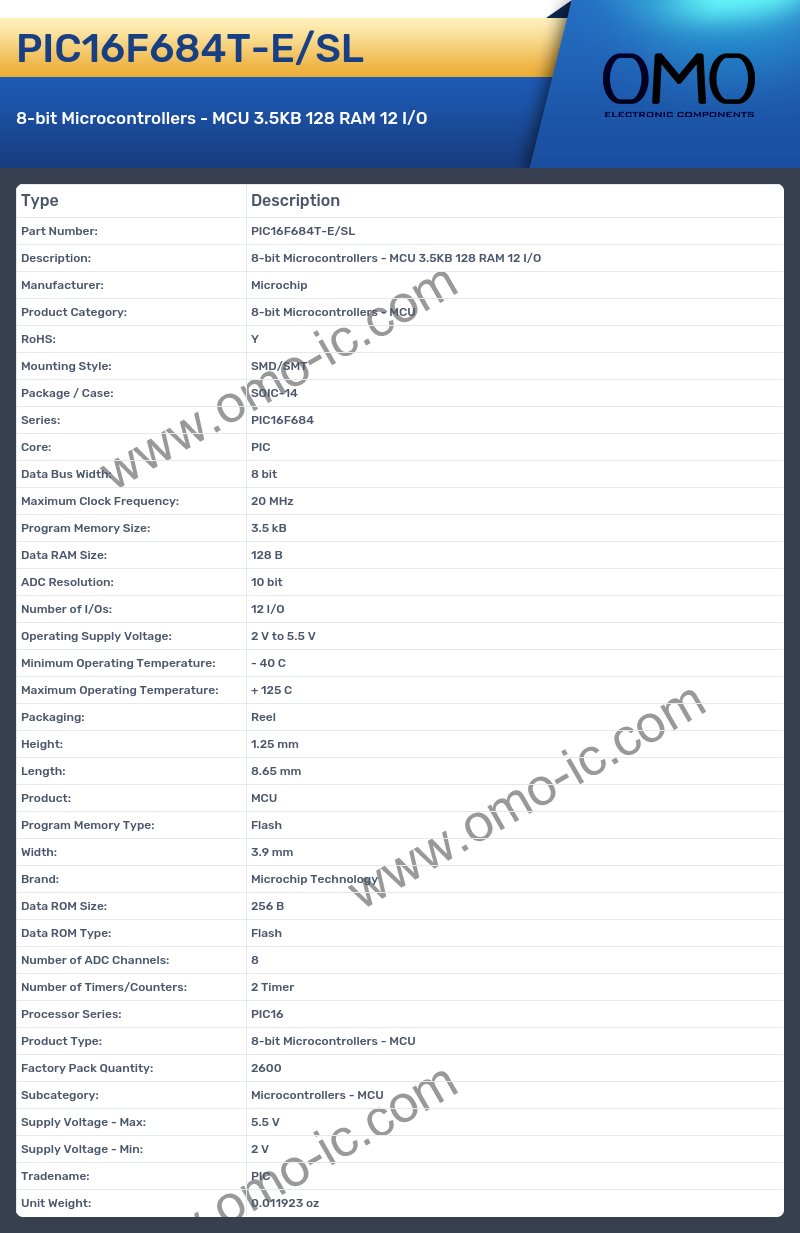

PIC16F684T-E/SL Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Series: PIC16F684
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 3.5 kB
• Data RAM Size: 128 B
• ADC Resolution: 10 bit
• Number of I/Os: 12 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 1.25 mm
• Length: 8.65 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 3.9 mm
• Brand: Microchip Technology
• Data ROM Size: 256 B
• Data ROM Type: Flash
• Number of ADC Channels: 8
• Number of Timers/Counters: 2 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 2600
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Tradename: PIC
• Unit Weight: 0.011923 oz
