PIC12F509-I/SM Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 4 MHz. The Program Memory Size of this product is 1.5 kB. The Data RAM Size of this product is 41 B. The ADC Resolution of this product is No ADC. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.88 mm. 5.21 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics Interface Type: RS-232, USB Yes regarding Moisture Sensitivity 8-bit Microcontrollers - MCU product type 90 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The product's PIC is Blue Gecko. 1. 0.019048 oz of Unit Weight

PIC12F509-I/SM Image

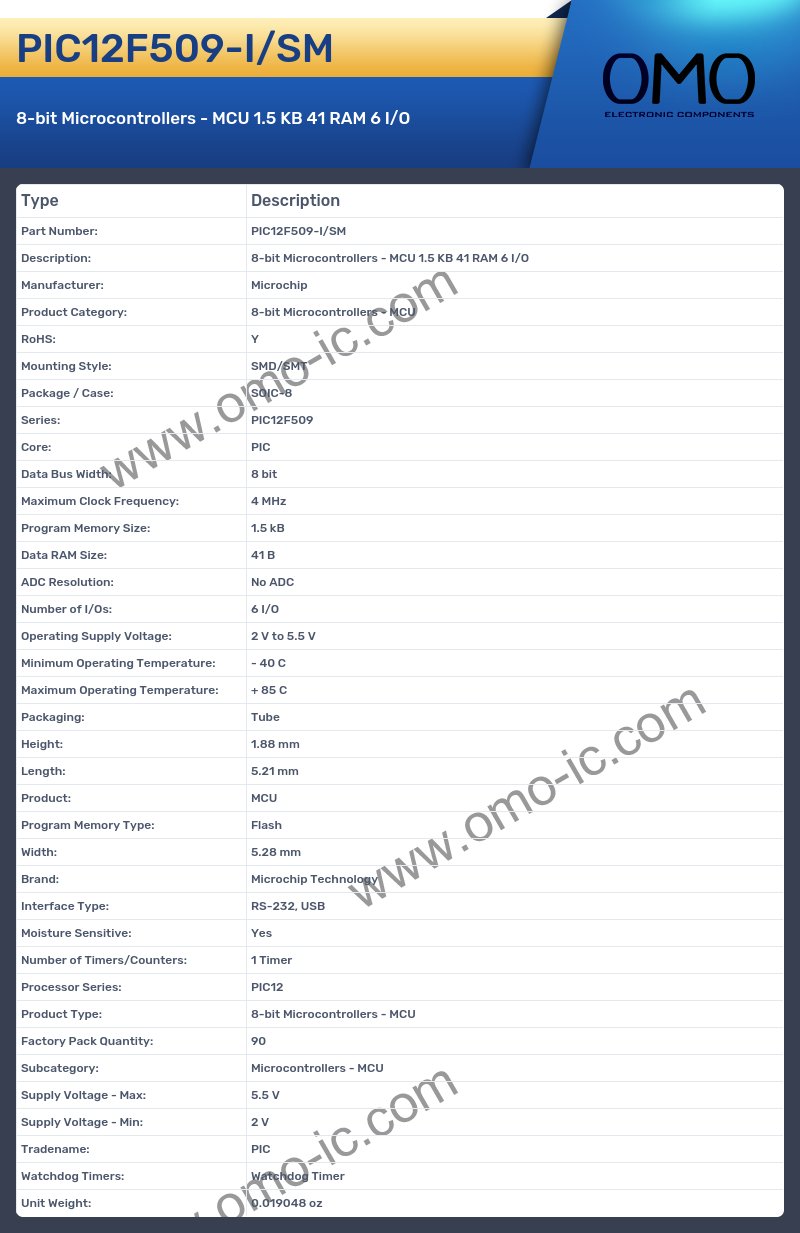

PIC12F509-I/SM Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Series: PIC12F509
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 4 MHz
• Program Memory Size: 1.5 kB
• Data RAM Size: 41 B
• ADC Resolution: No ADC
• Number of I/Os: 6 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.88 mm
• Length: 5.21 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 5.28 mm
• Brand: Microchip Technology
• Interface Type: RS-232, USB
• Moisture Sensitive: Yes
• Number of Timers/Counters: 1 Timer
• Processor Series: PIC12
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 90
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Tradename: PIC
• Watchdog Timers: Watchdog Timer
• Unit Weight: 0.019048 oz
