MCP4822-E/SN

MCP4822-E/SN Overview

This product is manufactured by Microchip. This product is equipped with 2 Channel for efficient performance. 4.5 us settling time Interface Type: SPI Internal is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.25 mm. The output type is Rail to Rail. This device belongs to the Low Power type. Resistive String architecture Microchip Technology is a trusted brand for quality electronics The 0.2 LSB, ensuring accurate and precise analog-to-digital conversion. - 0.1 %/FSR is 0.2%. INL is within 2 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range DACs - Digital to Analog Converters product type 100 of 100 Data Converter ICs as subcategory 1. 0.019048 oz of Unit Weight

MCP4822-E/SN Image

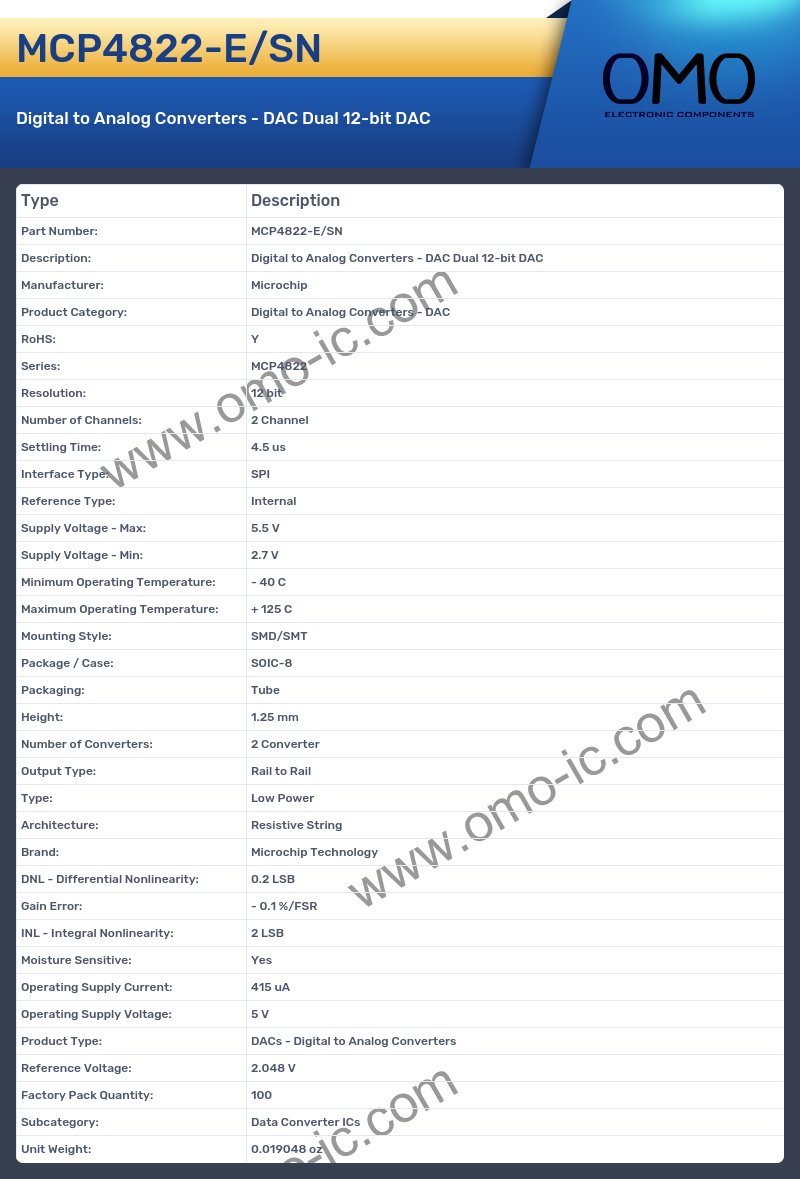

MCP4822-E/SN Specifications

• Manufacturer: Microchip
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: MCP4822
• Resolution: 12 bit
• Number of Channels: 2 Channel
• Settling Time: 4.5 us
• Interface Type: SPI
• Reference Type: Internal
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.25 mm
• Number of Converters: 2 Converter
• Output Type: Rail to Rail
• Type: Low Power
• Architecture: Resistive String
• Brand: Microchip Technology
• DNL - Differential Nonlinearity: 0.2 LSB
• Gain Error: - 0.1 %/FSR
• INL - Integral Nonlinearity: 2 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 415 uA
• Operating Supply Voltage: 5 V
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 2.048 V
• Factory Pack Quantity: 100
• Subcategory: Data Converter ICs
• Unit Weight: 0.019048 oz
