LTC1595ACN8#PBF

LTC1595ACN8#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 1 us settling time Interface Type: Serial SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing Digital input type The output type is Current. This device belongs to the Multiplying DAC type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.2 LSB, ensuring accurate and precise analog-to-digital conversion. 2 LSB is 0.2%. INL is within 0.25 LSB 0.055 mW DACs - Digital to Analog Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as 108 dB.

LTC1595ACN8#PBF Image

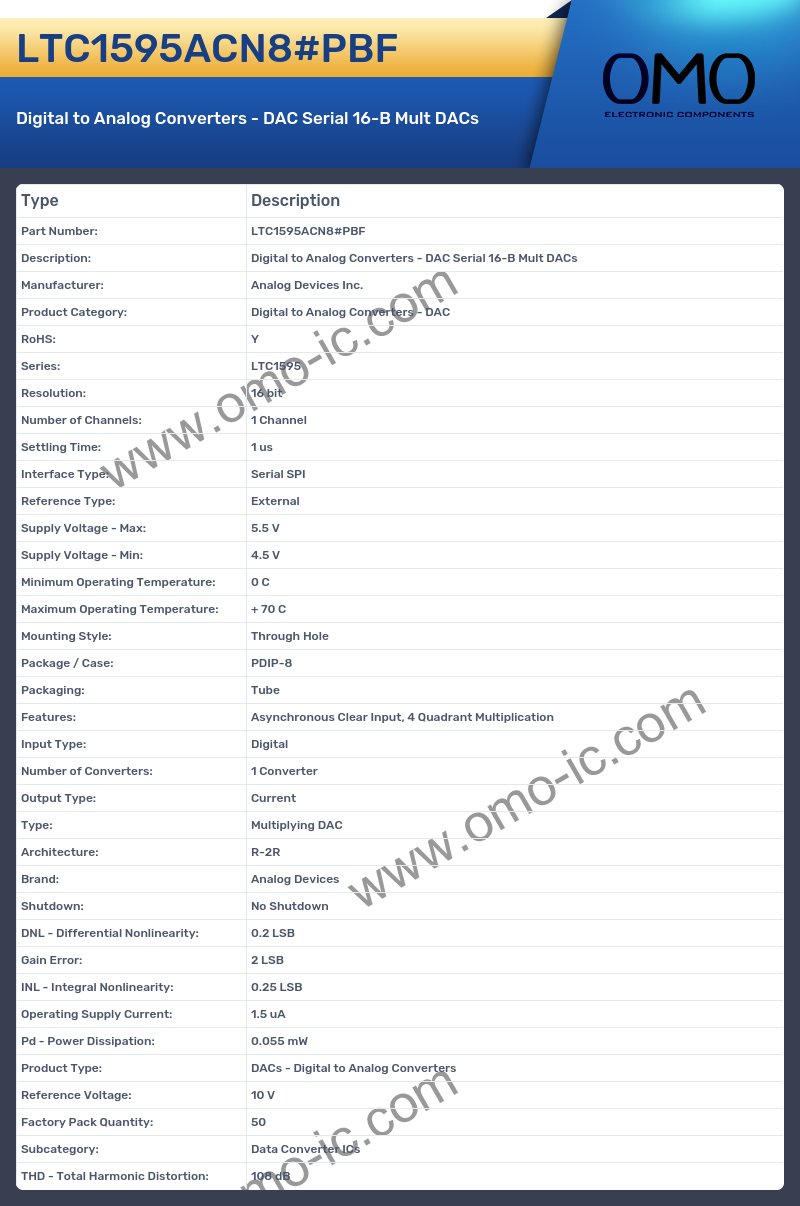

LTC1595ACN8#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: LTC1595
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Settling Time: 1 us
• Interface Type: Serial SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Features: Asynchronous Clear Input, 4 Quadrant Multiplication
• Input Type: Digital
• Number of Converters: 1 Converter
• Output Type: Current
• Type: Multiplying DAC
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.2 LSB
• Gain Error: 2 LSB
• INL - Integral Nonlinearity: 0.25 LSB
• Operating Supply Current: 1.5 uA
• Pd - Power Dissipation: 0.055 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 10 V
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: 108 dB
