LTC1420IGN#PBF

LTC1420IGN#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 10 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 2.048 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.75 mm. This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. DC552A is a versatile development platform for hardware and software The 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 0.35 LSB 250 mW ADCs - Analog to Digital Converters product type 49 of 100 Data Converter ICs as subcategory THD is as low as - 81 dB. 1. 0.025045 oz of Unit Weight

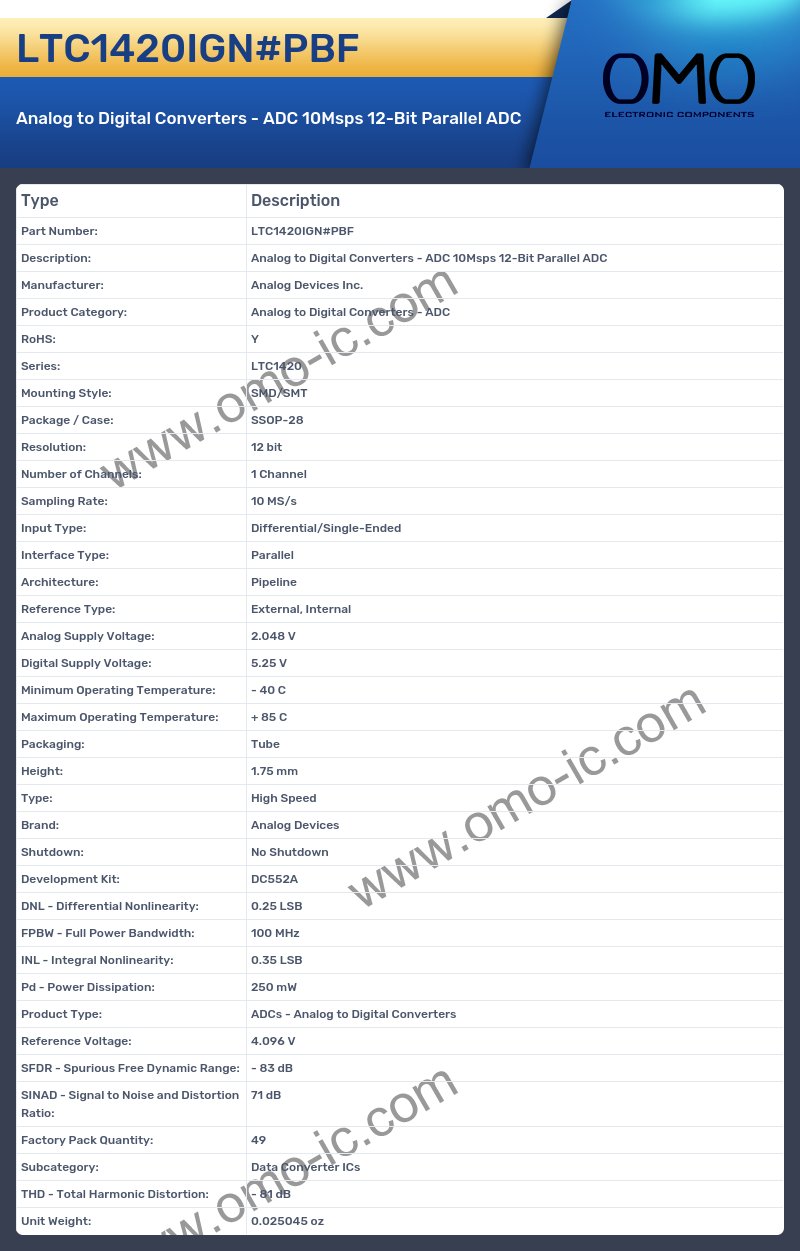

LTC1420IGN#PBF Image

LTC1420IGN#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC1420
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 10 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 2.048 V
• Digital Supply Voltage: 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.75 mm
• Type: High Speed
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: DC552A
• DNL - Differential Nonlinearity: 0.25 LSB
• FPBW - Full Power Bandwidth: 100 MHz
• INL - Integral Nonlinearity: 0.35 LSB
• Pd - Power Dissipation: 250 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 4.096 V
• SFDR - Spurious Free Dynamic Range: - 83 dB
• SINAD - Signal to Noise and Distortion Ratio: 71 dB
• Factory Pack Quantity: 49
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 81 dB
• Unit Weight: 0.025045 oz
