LP38690SD-3.3/NOPB

LP38690SD-3.3/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-6 package/case type is utilized by this product. Output Voltage is 3.3 V Output current: 1 A 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 10 V The output type is Fixed. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 450 mV Reel packaging for easy dispensing LDO CMOS Linear Regulators 2.5 % Tolerance This device belongs to the Low Dropout Linear Regulator type. Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 0.11 V at 100 mA, 1 V at 1 A PSRR/Ripple Rejection - Typ is 55 dB Voltage Regulation Accuracy of +/- 2.5 % is ensured. This product has an 55 uA of 5 uA for precise signal processing. Load regulation is 1.8 %/A. LDO Voltage Regulators product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.000342 oz of Unit Weight

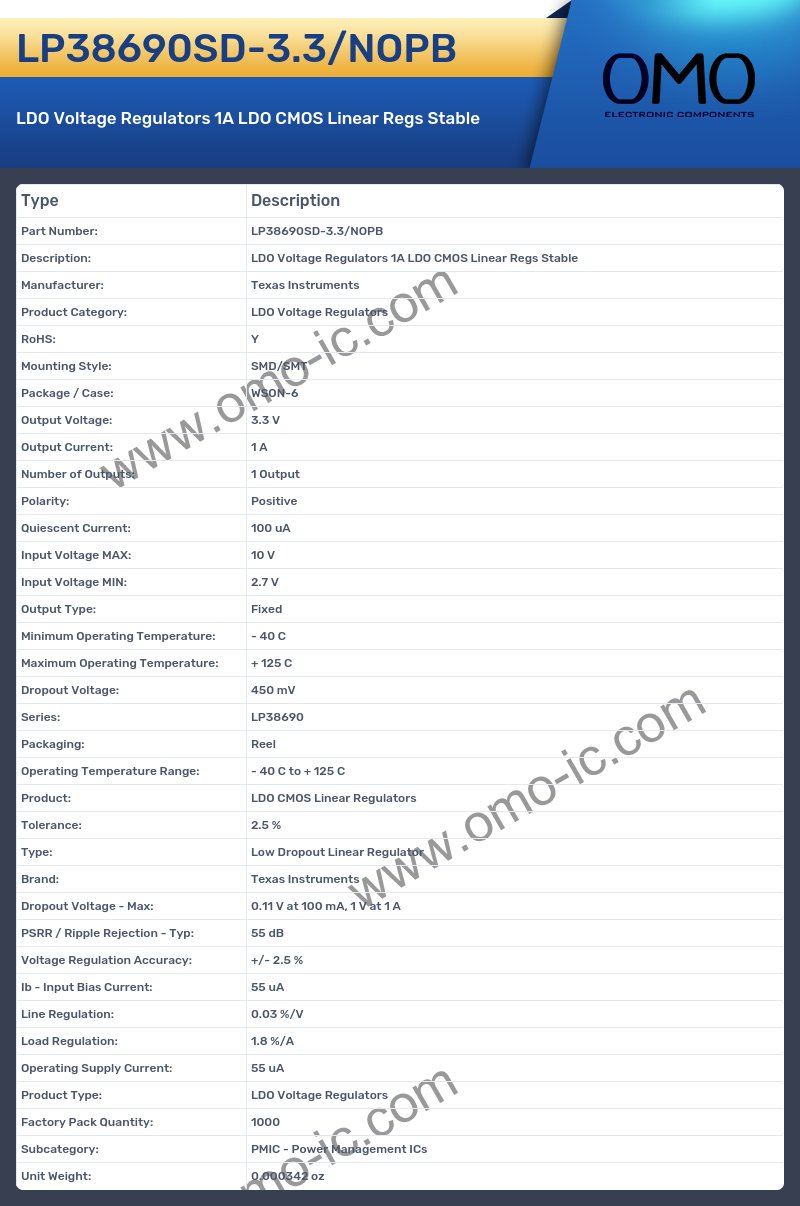

LP38690SD-3.3/NOPB Image

LP38690SD-3.3/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: WSON-6
• Output Voltage: 3.3 V
• Output Current: 1 A
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 100 uA
• Input Voltage MAX: 10 V
• Input Voltage MIN: 2.7 V
• Output Type: Fixed
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 450 mV
• Series: LP38690
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Product: LDO CMOS Linear Regulators
• Tolerance: 2.5 %
• Type: Low Dropout Linear Regulator
• Brand: Texas Instruments
• Dropout Voltage - Max: 0.11 V at 100 mA, 1 V at 1 A
• PSRR / Ripple Rejection - Typ: 55 dB
• Voltage Regulation Accuracy: +/- 2.5 %
• Ib - Input Bias Current: 55 uA
• Line Regulation: 0.03 %/V
• Load Regulation: 1.8 %/A
• Operating Supply Current: 55 uA
• Product Type: LDO Voltage Regulators
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.000342 oz
