LMP8601QMAX/NOPB

LMP8601QMAX/NOPB Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Reel packaging for easy dispensing The amplifier type is Current Sense. The height of the product is 1.45 mm. Common Mode input type 4.9 mm long Current Sense Amplifiers Supply Type: Single Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Bandwidth at -3 dB is 60 kHz 0.5 % is 0.2%. Gain ratio is 20 V/V. 5 V operating supply voltage range Current Sense Amplifiers product type This product has a 90 dB (Typ) of 50 dB, providing reliable power supply noise rejection. 2500 of 100 Amplifier ICs as subcategory 1. 0.005044 oz of Unit Weight

LMP8601QMAX/NOPB Image

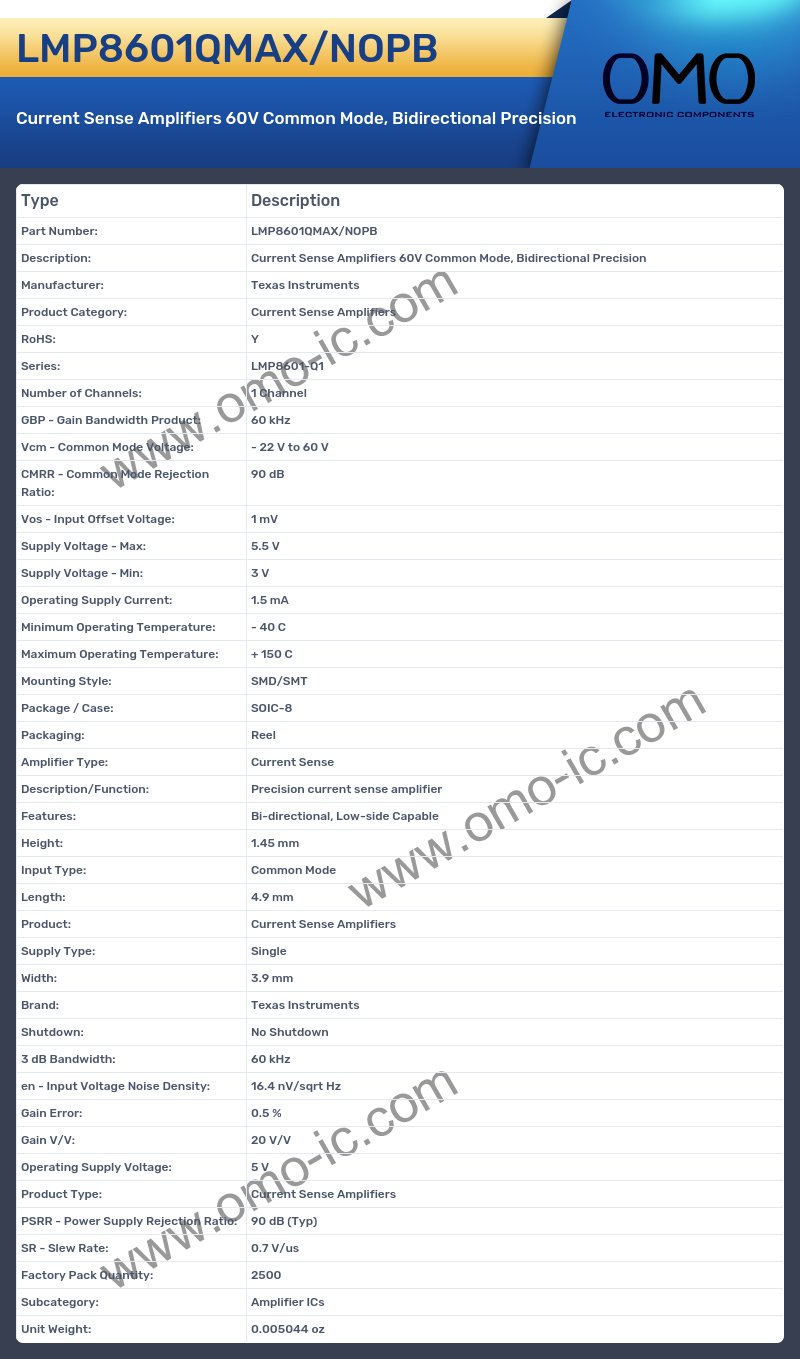

LMP8601QMAX/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Current Sense Amplifiers
• RoHS: Y
• Series: LMP8601-Q1
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 60 kHz
• Vcm - Common Mode Voltage: - 22 V to 60 V
• CMRR - Common Mode Rejection Ratio: 90 dB
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 1.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Reel
• Amplifier Type: Current Sense
• Description/Function: Precision current sense amplifier
• Features: Bi-directional, Low-side Capable
• Height: 1.45 mm
• Input Type: Common Mode
• Length: 4.9 mm
• Product: Current Sense Amplifiers
• Supply Type: Single
• Width: 3.9 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• 3 dB Bandwidth: 60 kHz
• en - Input Voltage Noise Density: 16.4 nV/sqrt Hz
• Gain Error: 0.5 %
• Gain V/V: 20 V/V
• Operating Supply Voltage: 5 V
• Product Type: Current Sense Amplifiers
• PSRR - Power Supply Rejection Ratio: 90 dB (Typ)
• SR - Slew Rate: 0.7 V/us
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Unit Weight: 0.005044 oz
