LM7301IM5X/NOPB

LM7301IM5X/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOT-23-5 package/case type is utilized by this product. Supply Voltage - Max: 32 V This product is equipped with 1 Channel for efficient performance. This product has a 70 dB to 93 dB of 50 dB, ensuring reliable signal acquisition. This product has an 200 nA of 5 uA for precise signal processing. Supply Voltage - Min: 1.8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Reel packaging for easy dispensing The height of the product is 1.02 mm. Rail-to-Rail input type 2.92 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.24 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 16 V. +/- 0.9 V minimum dual supply voltage 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V operating supply voltage range 350 mW Op Amps - Operational Amplifiers product type This product has a 87 dB of 50 dB, providing reliable power supply noise rejection. 3000 of 100 Amplifier ICs as subcategory 1. 0.000222 oz of Unit Weight

LM7301IM5X/NOPB Image

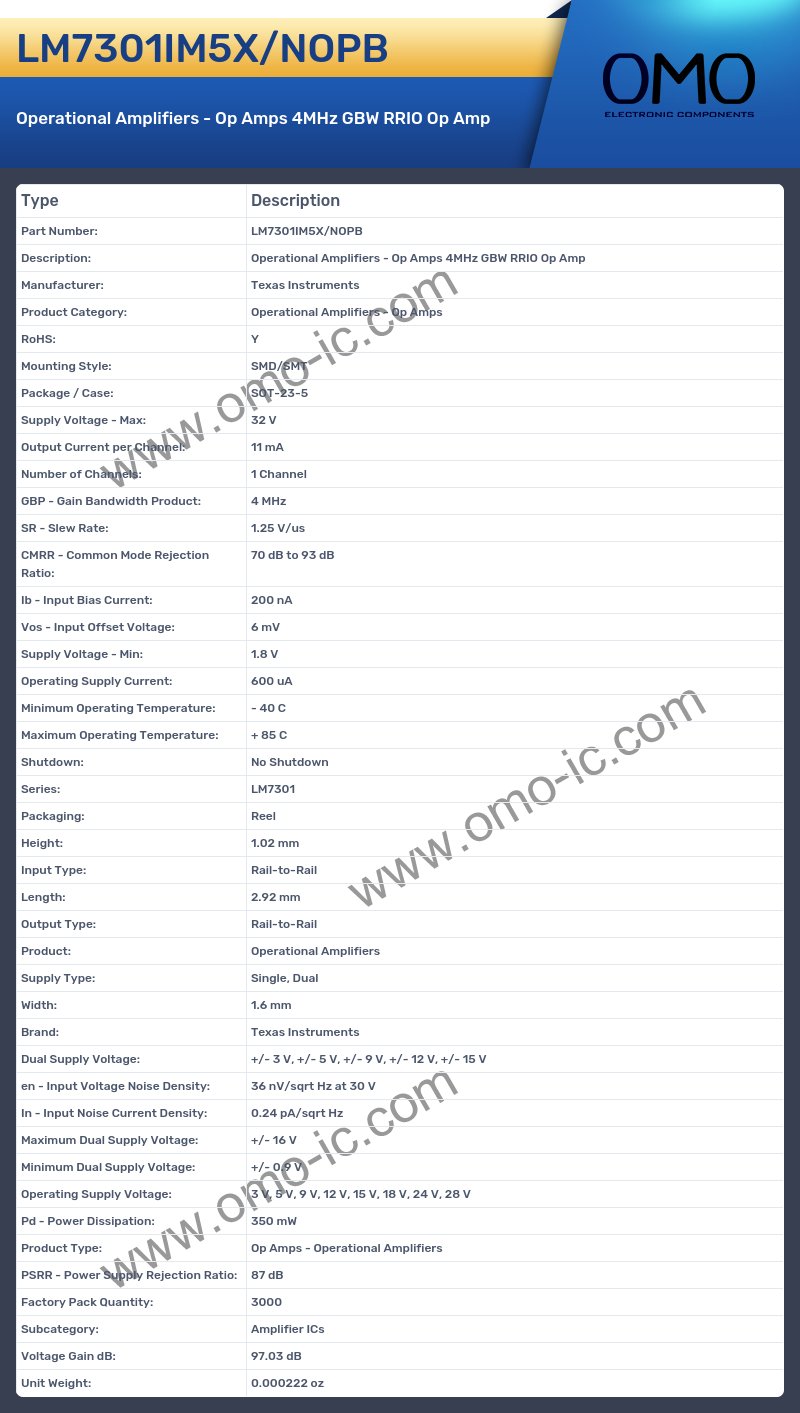

LM7301IM5X/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-5
• Supply Voltage - Max: 32 V
• Output Current per Channel: 11 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 4 MHz
• SR - Slew Rate: 1.25 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 93 dB
• Ib - Input Bias Current: 200 nA
• Vos - Input Offset Voltage: 6 mV
• Supply Voltage - Min: 1.8 V
• Operating Supply Current: 600 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: LM7301
• Packaging: Reel
• Height: 1.02 mm
• Input Type: Rail-to-Rail
• Length: 2.92 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 1.6 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 36 nV/sqrt Hz at 30 V
• In - Input Noise Current Density: 0.24 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 16 V
• Minimum Dual Supply Voltage: +/- 0.9 V
• Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
• Pd - Power Dissipation: 350 mW
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 87 dB
• Factory Pack Quantity: 3000
• Subcategory: Amplifier ICs
• Voltage Gain dB: 97.03 dB
• Unit Weight: 0.000222 oz
