LM346M

LM346M Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Supply Voltage - Max: 36 V This product is equipped with 4 Channel for efficient performance. This product has a 70 dB of 50 dB, ensuring reliable signal acquisition. This product has an 0.25 uA of 5 uA for precise signal processing. Supply Voltage - Min: 3 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Programmable. The height of the product is 1.45 mm. 9.91 mm long Operational Amplifiers Supply Type: Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 18 V. +/- 1.5 V minimum dual supply voltage 3 V to 36 V operating supply voltage range 500 mW (1/2 W) Op Amps - Operational Amplifiers product type This product has a 74 dB of 50 dB, providing reliable power supply noise rejection. 48 of 100 Amplifier ICs as subcategory 1. 0.005069 oz of Unit Weight

LM346M Image

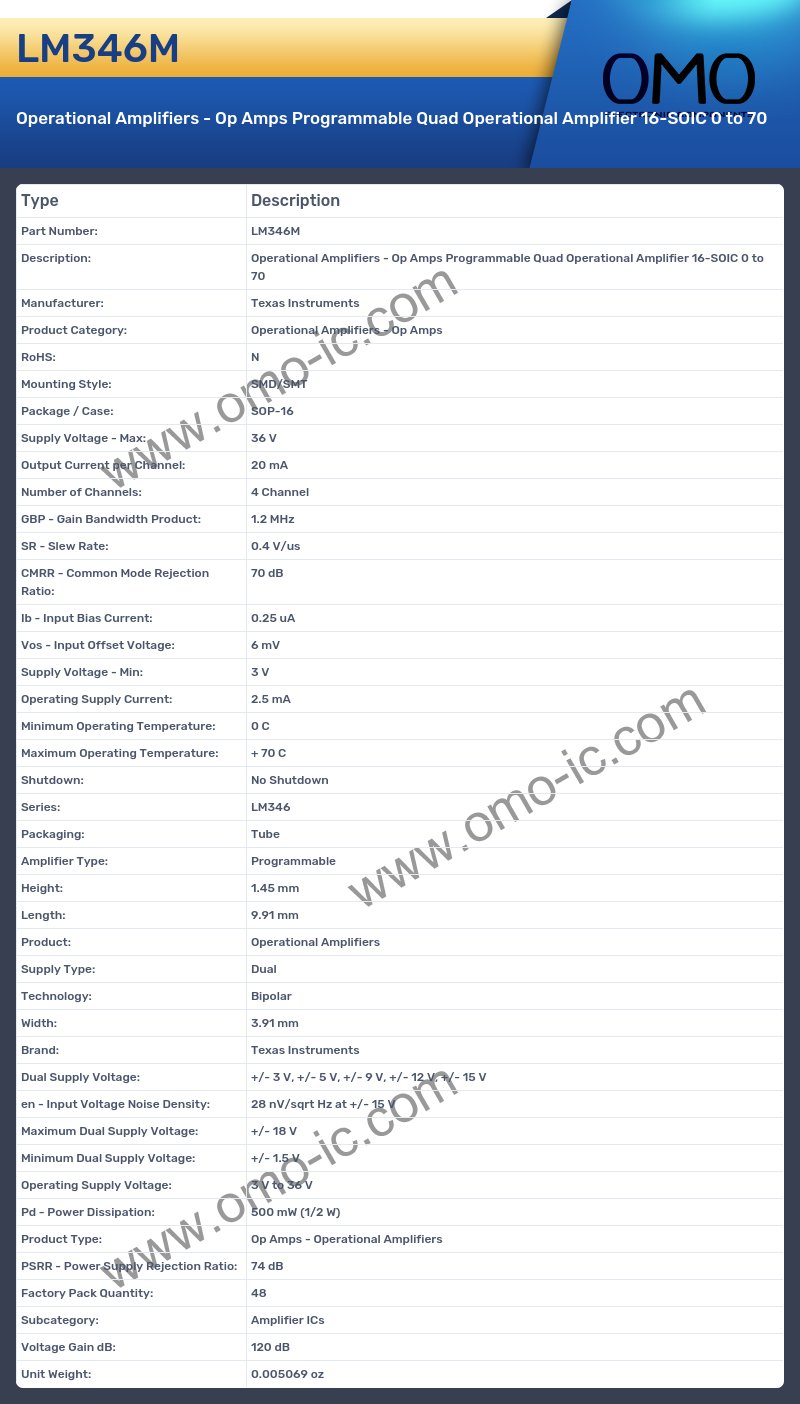

LM346M Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Supply Voltage - Max: 36 V
• Output Current per Channel: 20 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 1.2 MHz
• SR - Slew Rate: 0.4 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 0.25 uA
• Vos - Input Offset Voltage: 6 mV
• Supply Voltage - Min: 3 V
• Operating Supply Current: 2.5 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: LM346
• Packaging: Tube
• Amplifier Type: Programmable
• Height: 1.45 mm
• Length: 9.91 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 28 nV/sqrt Hz at +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 36 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 74 dB
• Factory Pack Quantity: 48
• Subcategory: Amplifier ICs
• Voltage Gain dB: 120 dB
• Unit Weight: 0.005069 oz
