LM306DRE4

LM306DRE4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. The comparator type of this product is Differential for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is Push-Pull. This product has an 25 uA of 5 uA for precise signal processing. Supply Voltage - Max: 24 V Supply Voltage - Min: 15 V 28 ns response time The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Reel packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Analog Comparators Supply Type: Dual This device belongs to the Differential Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 12 V. 7.5 V minimum dual supply voltage 15 V to 24 V operating supply voltage range 600 mW Analog Comparators product type 2500 of 100 Amplifier ICs as subcategory 1. 0.002561 oz of Unit Weight

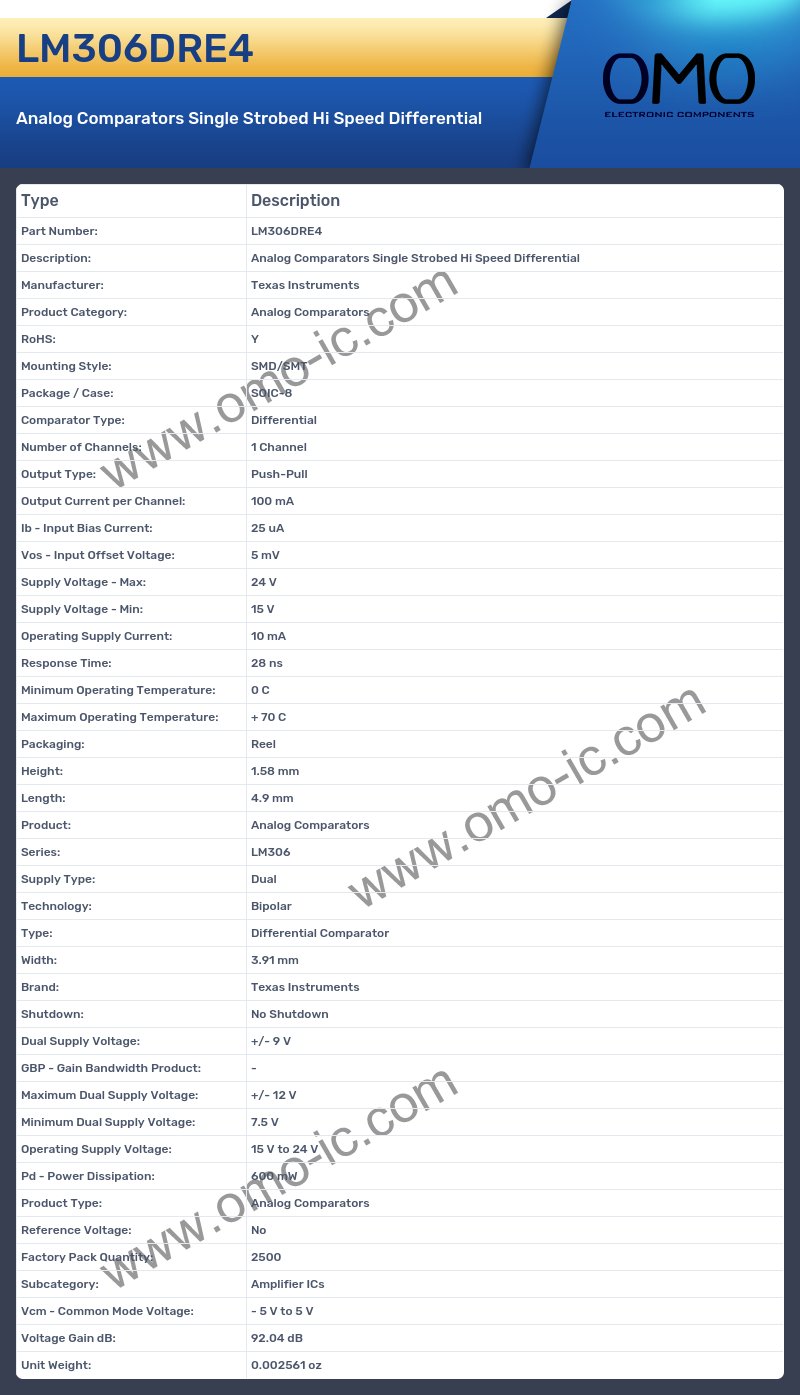

LM306DRE4 Image

LM306DRE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Comparator Type: Differential
• Number of Channels: 1 Channel
• Output Type: Push-Pull
• Output Current per Channel: 100 mA
• Ib - Input Bias Current: 25 uA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 24 V
• Supply Voltage - Min: 15 V
• Operating Supply Current: 10 mA
• Response Time: 28 ns
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Reel
• Height: 1.58 mm
• Length: 4.9 mm
• Product: Analog Comparators
• Series: LM306
• Supply Type: Dual
• Technology: Bipolar
• Type: Differential Comparator
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 9 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 12 V
• Minimum Dual Supply Voltage: 7.5 V
• Operating Supply Voltage: 15 V to 24 V
• Pd - Power Dissipation: 600 mW
• Product Type: Analog Comparators
• Reference Voltage: No
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 5 V to 5 V
• Voltage Gain dB: 92.04 dB
• Unit Weight: 0.002561 oz
