LM301AH

LM301AH Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-99-8 package/case type is utilized by this product. Supply Voltage - Max: 36 V This product is equipped with 1 Channel for efficient performance. This product has a 70 dB to 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 250 nA of 5 uA for precise signal processing. Supply Voltage - Min: 10 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Bulk packaging for easy dispensing The height of the product is 4.45 mm. Rail-to-Rail input type 9.14 mm long Operational Amplifiers Supply Type: Dual Texas Instruments is a trusted brand for quality electronics The 0.1 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 5 V minimum dual supply voltage 10 V to 36 V operating supply voltage range 700 mW Op Amps - Operational Amplifiers product type 500 of 100 Amplifier ICs as subcategory

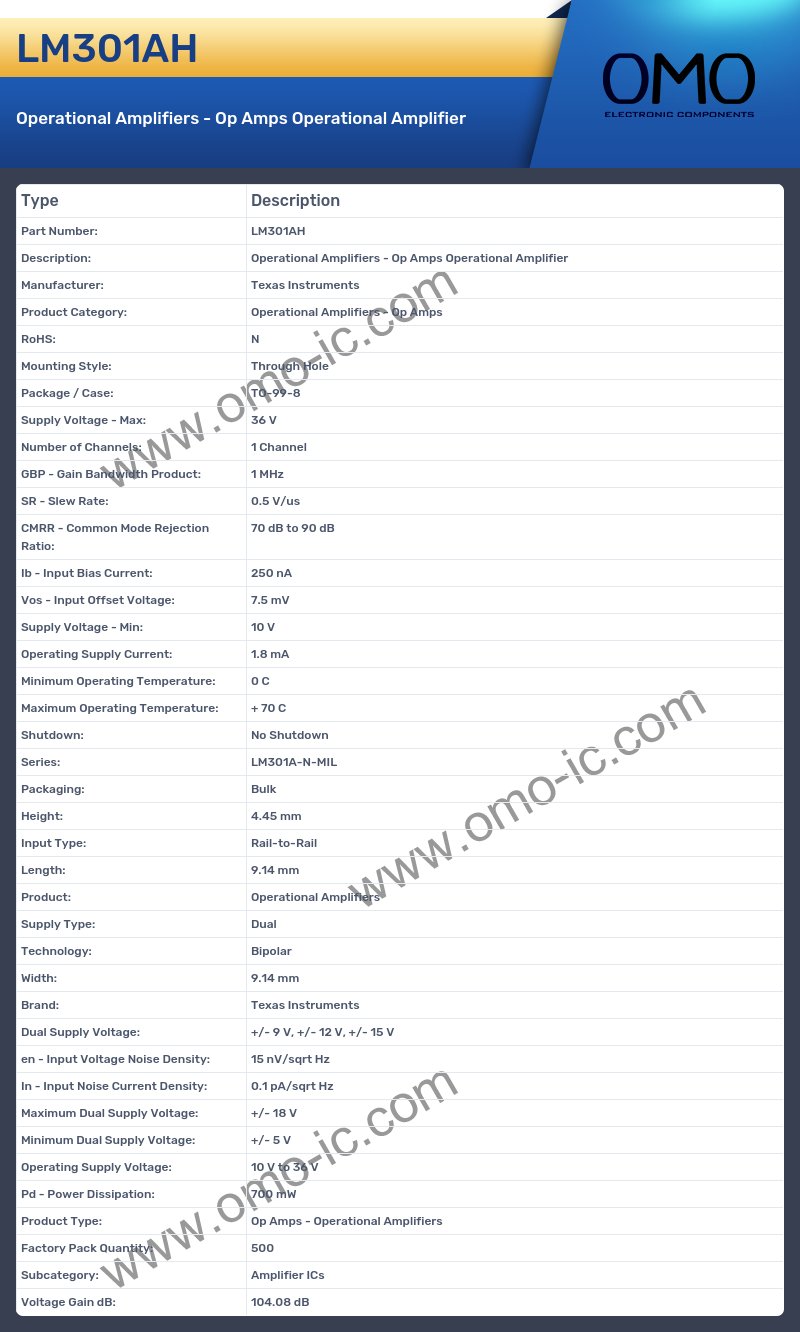

LM301AH Image

LM301AH Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: TO-99-8
• Supply Voltage - Max: 36 V
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1 MHz
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 7.5 mV
• Supply Voltage - Min: 10 V
• Operating Supply Current: 1.8 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: LM301A-N-MIL
• Packaging: Bulk
• Height: 4.45 mm
• Input Type: Rail-to-Rail
• Length: 9.14 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 9.14 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 15 nV/sqrt Hz
• In - Input Noise Current Density: 0.1 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 5 V
• Operating Supply Voltage: 10 V to 36 V
• Pd - Power Dissipation: 700 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 500
• Subcategory: Amplifier ICs
• Voltage Gain dB: 104.08 dB
