L6398D Overview

This product is manufactured by STMicroelectronics. Half-Bridge Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. Output current: 290 mA Rise Time is 75 ns. 35 ns fall time Supply Voltage - Min: - 300 mV Supply Voltage - Max: 21 V 800 mW Tube packaging for easy dispensing Output Voltage is - 11 V to + 580 V STMicroelectronics is a trusted brand for quality electronics 200 ns maximum turn-off delay time The 200 ns. Yes regarding Moisture Sensitivity Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.004395 oz of Unit Weight

L6398D Image

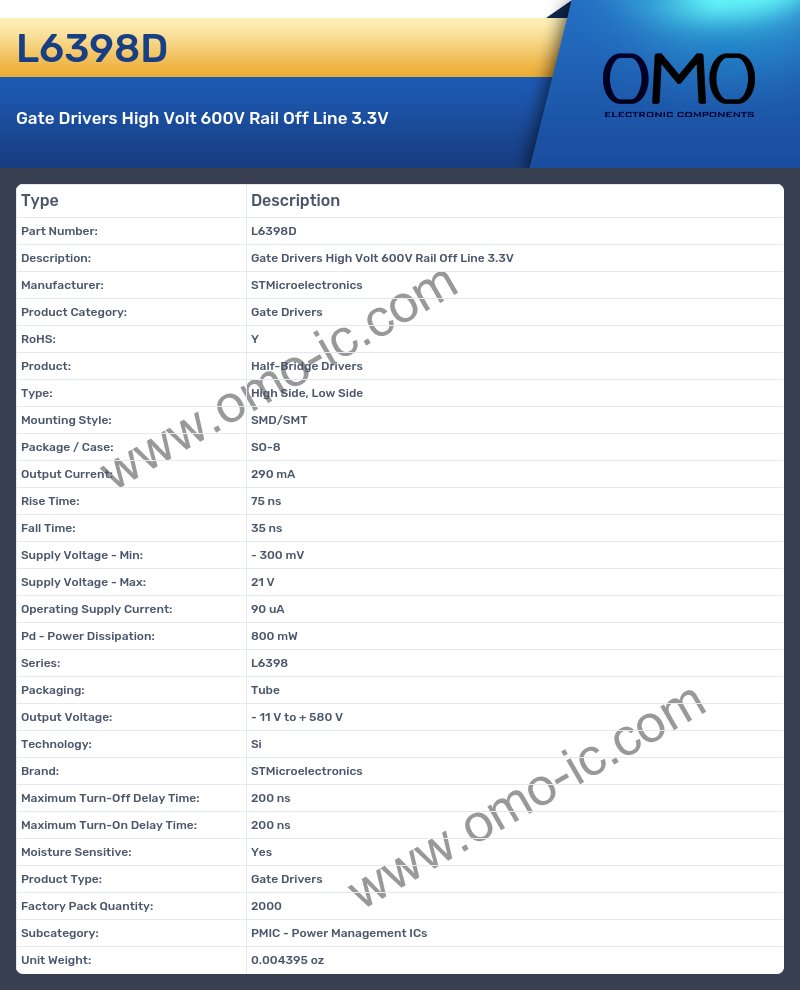

L6398D Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Output Current: 290 mA
• Rise Time: 75 ns
• Fall Time: 35 ns
• Supply Voltage - Min: - 300 mV
• Supply Voltage - Max: 21 V
• Operating Supply Current: 90 uA
• Pd - Power Dissipation: 800 mW
• Series: L6398
• Packaging: Tube
• Output Voltage: - 11 V to + 580 V
• Technology: Si
• Brand: STMicroelectronics
• Maximum Turn-Off Delay Time: 200 ns
• Maximum Turn-On Delay Time: 200 ns
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004395 oz
