INA2126PAG4

INA2126PAG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 2 Channel for efficient performance. This product has a 83 dB of 50 dB, ensuring reliable signal acquisition. This product has an 25 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 4.57 mm. 19.3 mm long Instrumentation Amplifiers Texas Instruments is a trusted brand for quality electronics Bandwidth at -3 dB is 9 kHz 0.012 % is 0.2%. Gain ratio is 5 V/V to 10000 V/V. INL is within 0.012 % 2.7 V to 36 V operating supply voltage range Instrumentation Amplifiers product type This product has a 106 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.037172 oz of Unit Weight

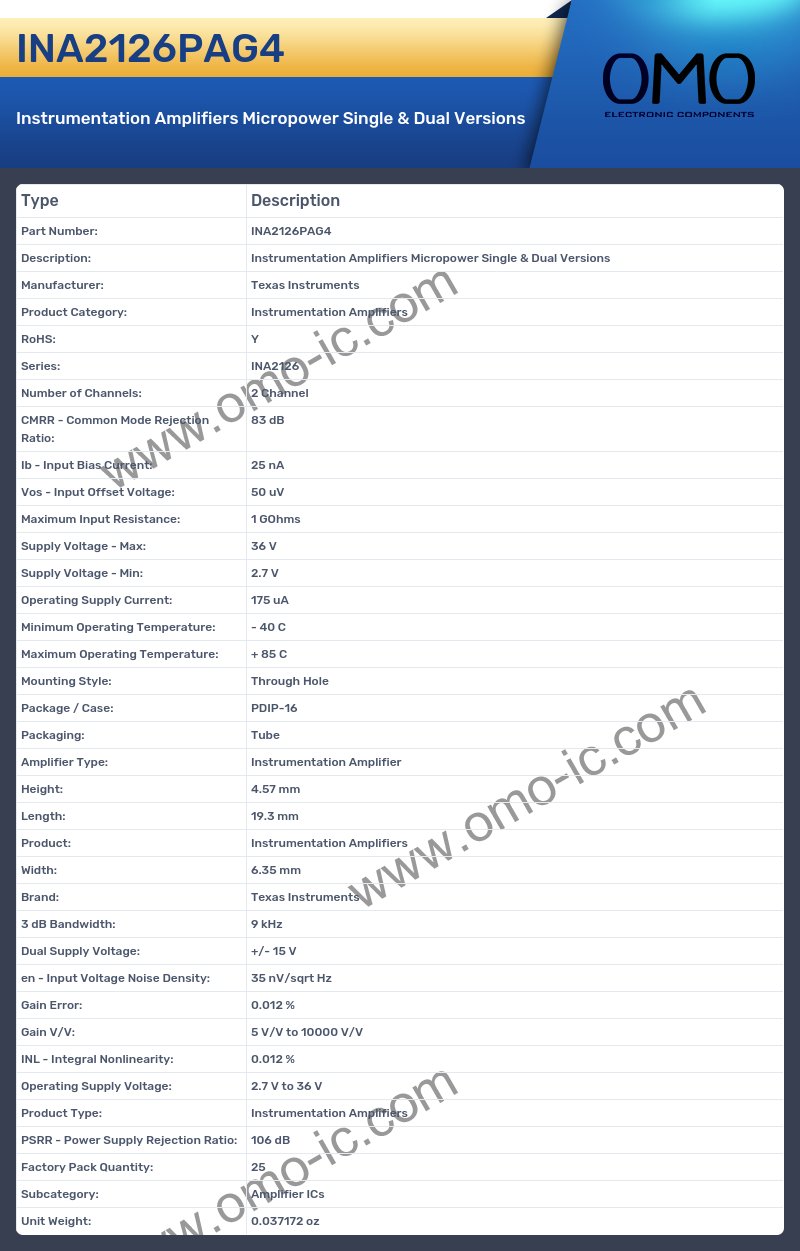

INA2126PAG4 Image

INA2126PAG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: INA2126
• Number of Channels: 2 Channel
• CMRR - Common Mode Rejection Ratio: 83 dB
• Ib - Input Bias Current: 25 nA
• Vos - Input Offset Voltage: 50 uV
• Maximum Input Resistance: 1 GOhms
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 175 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Instrumentation Amplifiers
• Width: 6.35 mm
• Brand: Texas Instruments
• 3 dB Bandwidth: 9 kHz
• Dual Supply Voltage: +/- 15 V
• en - Input Voltage Noise Density: 35 nV/sqrt Hz
• Gain Error: 0.012 %
• Gain V/V: 5 V/V to 10000 V/V
• INL - Integral Nonlinearity: 0.012 %
• Operating Supply Voltage: 2.7 V to 36 V
• Product Type: Instrumentation Amplifiers
• PSRR - Power Supply Rejection Ratio: 106 dB
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Unit Weight: 0.037172 oz
