HV2301PJ-G

HV2301PJ-G Overview

This product is manufactured by Microchip. Our product has a 8 Switch number of switches. This product has a 8 x SPST configuration. Maximum switch voltage is 160 V Our product has a maximum 5 us. Our product has a maximum 5 us. 3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. PLCC-28 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.68 mm (Min). 11.51 mm long Supply Type: Dual Supply Microchip Technology is a trusted brand for quality electronics Maximum supply current: 10 uA 1. The maximum dual supply voltage is - 40 V, 200 V. - 160 V, 40 V minimum dual supply voltage 1.2 W Analog Switch ICs product type 38 of 100 Switch ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V 1. 0.041719 oz of Unit Weight

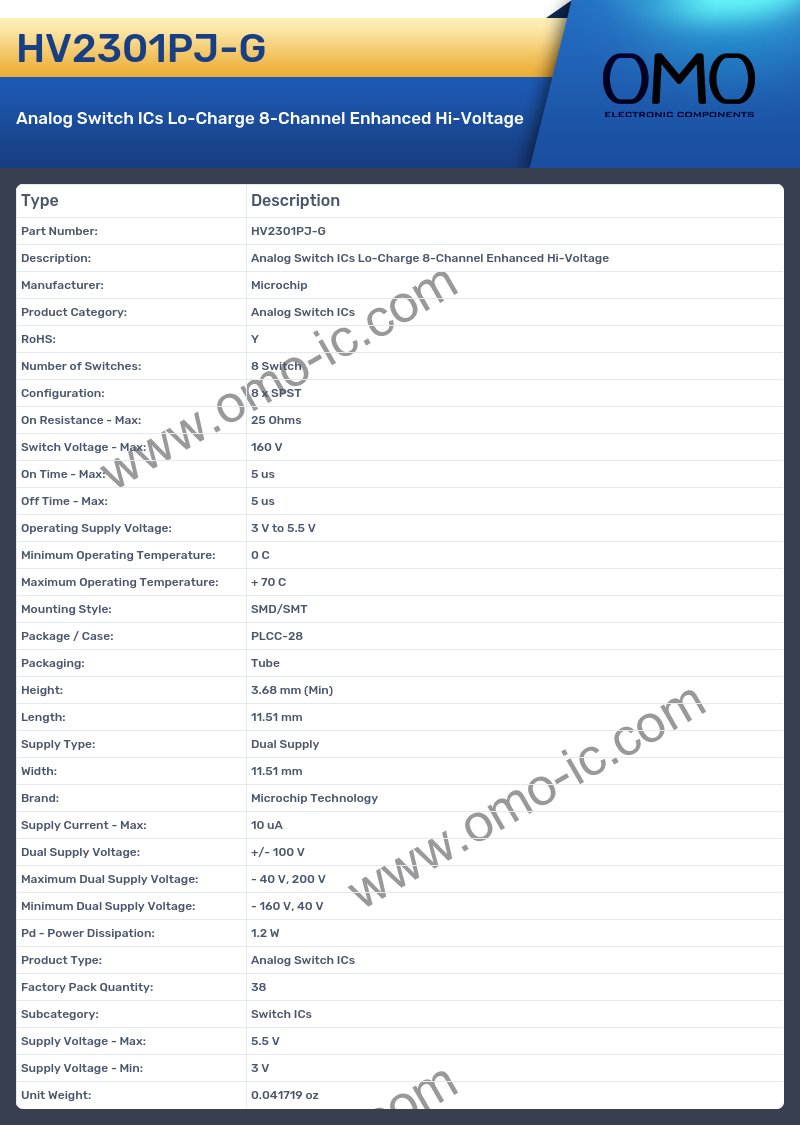

HV2301PJ-G Image

HV2301PJ-G Specifications

• Manufacturer: Microchip
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 8 Switch
• Configuration: 8 x SPST
• On Resistance - Max: 25 Ohms
• Switch Voltage - Max: 160 V
• On Time - Max: 5 us
• Off Time - Max: 5 us
• Operating Supply Voltage: 3 V to 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: PLCC-28
• Packaging: Tube
• Height: 3.68 mm (Min)
• Length: 11.51 mm
• Supply Type: Dual Supply
• Width: 11.51 mm
• Brand: Microchip Technology
• Supply Current - Max: 10 uA
• Dual Supply Voltage: +/- 100 V
• Maximum Dual Supply Voltage: - 40 V, 200 V
• Minimum Dual Supply Voltage: - 160 V, 40 V
• Pd - Power Dissipation: 1.2 W
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 38
• Subcategory: Switch ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Unit Weight: 0.041719 oz
