DSD1702E Overview

This product is manufactured by Texas Instruments. Interface Type: SPI The sampling rate of this product is 192 kS/s. 5 V operating supply voltage range The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. QSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 8.75 mm (Max) long The output type is Voltage. Audio DACs Supply Type: Analog and Digital Delta-Sigma architecture Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 Channel for efficient performance. THD plus Noise value is 0.001 %. +/- 6 % FSR is 0.2%. INL is within +/- 0.5 dB Polarity type: Bipolar Audio D/A Converter ICs product type 50 of 100 Audio ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V 1. 0.004437 oz of Unit Weight

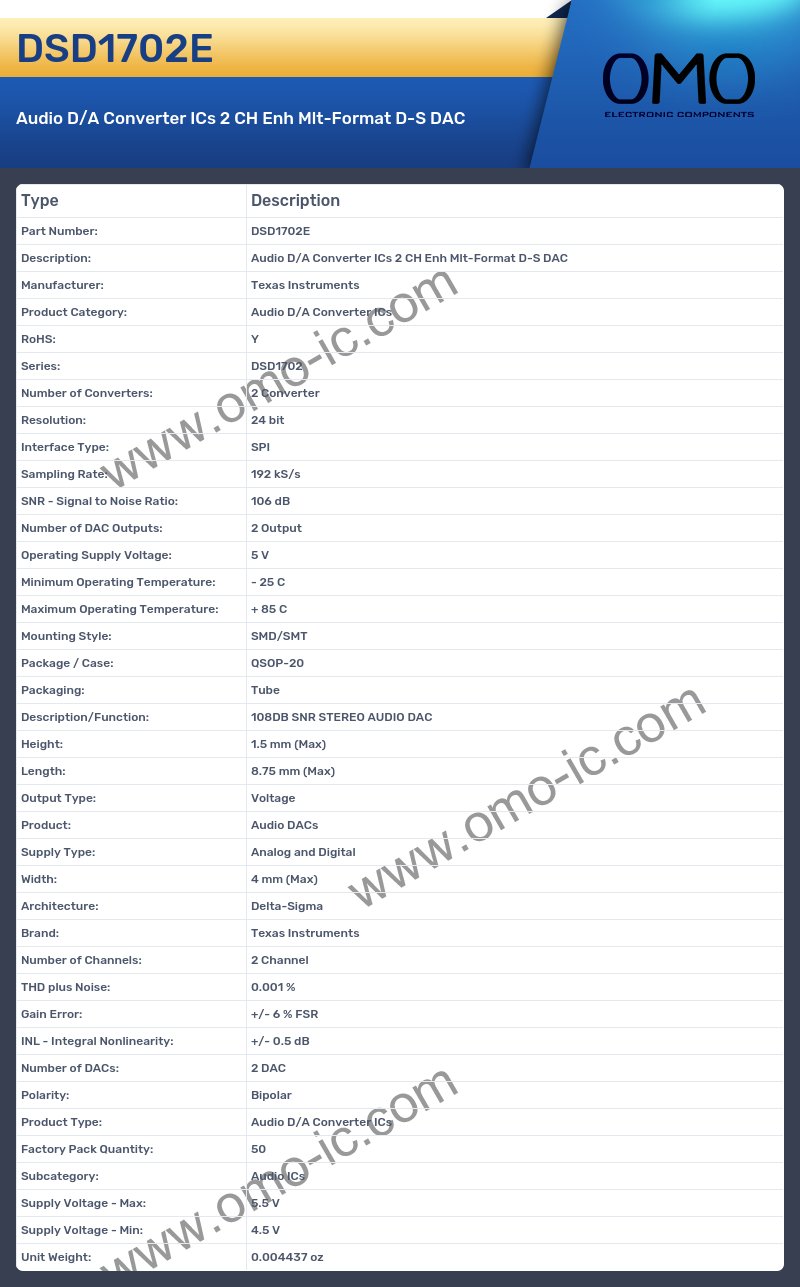

DSD1702E Image

DSD1702E Specifications

• Manufacturer: Texas Instruments
• Product Category: Audio D/A Converter ICs
• RoHS: Y
• Series: DSD1702
• Number of Converters: 2 Converter
• Resolution: 24 bit
• Interface Type: SPI
• Sampling Rate: 192 kS/s
• SNR - Signal to Noise Ratio: 106 dB
• Number of DAC Outputs: 2 Output
• Operating Supply Voltage: 5 V
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: QSOP-20
• Packaging: Tube
• Description/Function: 108DB SNR STEREO AUDIO DAC
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Output Type: Voltage
• Product: Audio DACs
• Supply Type: Analog and Digital
• Width: 4 mm (Max)
• Architecture: Delta-Sigma
• Brand: Texas Instruments
• Number of Channels: 2 Channel
• THD plus Noise: 0.001 %
• Gain Error: +/- 6 % FSR
• INL - Integral Nonlinearity: +/- 0.5 dB
• Number of DACs: 2 DAC
• Polarity: Bipolar
• Product Type: Audio D/A Converter ICs
• Factory Pack Quantity: 50
• Subcategory: Audio ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Unit Weight: 0.004437 oz
