DN2535N5-G

DN2535N5-G Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 350 V 500 mA continuous drain current Rds On value of 25 Ohms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 15 W This product has a Single configuration. The Channel Mode is set to Depletion. Tube packaging for easy dispensing The height of the product is 9.02 mm. 10.67 mm long The Transistor Type is 1 N-Channel. Microchip Technology is a trusted brand for quality electronics Minimum forward transconductance of 325 mS 20 ns fall time MOSFET product type Rise Time is 15 ns. 50 of 100 MOSFETs as subcategory Turn-off delay time is 15 ns. The typical turn-on delay time is 10 ns. 1. 0.211644 oz of Unit Weight

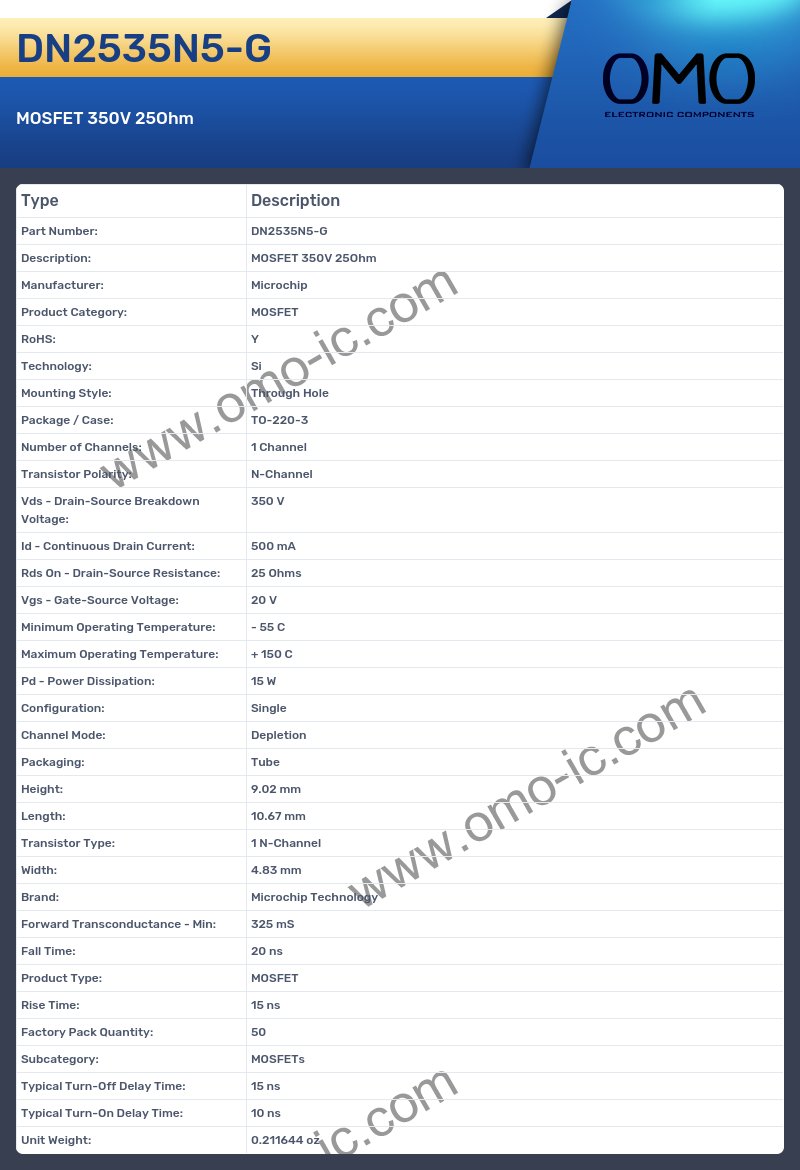

DN2535N5-G Image

DN2535N5-G Specifications

• Manufacturer: Microchip
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 350 V
• Id - Continuous Drain Current: 500 mA
• Rds On - Drain-Source Resistance: 25 Ohms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 15 W
• Configuration: Single
• Channel Mode: Depletion
• Packaging: Tube
• Height: 9.02 mm
• Length: 10.67 mm
• Transistor Type: 1 N-Channel
• Width: 4.83 mm
• Brand: Microchip Technology
• Forward Transconductance - Min: 325 mS
• Fall Time: 20 ns
• Product Type: MOSFET
• Rise Time: 15 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 15 ns
• Typical Turn-On Delay Time: 10 ns
• Unit Weight: 0.211644 oz
