DAC7563TDSCT

DAC7563TDSCT Overview

This product is manufactured by Texas Instruments. The sampling rate of this product is 100 kS/s. This product is equipped with 2 Channel for efficient performance. 10 us settling time Interface Type: Serial, SPI External, Internal is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. WSON-10 package/case type is utilized by this product. Reel packaging for easy dispensing The output type is Buffer, Rail to Rail. This device belongs to the Precision type. String architecture Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.05 LSB, ensuring accurate and precise analog-to-digital conversion. 0.15 % FSR is 0.2%. INL is within 4 LSB Yes regarding Moisture Sensitivity 3.2 mW DACs - Digital to Analog Converters product type 250 of 100 Data Converter ICs as subcategory

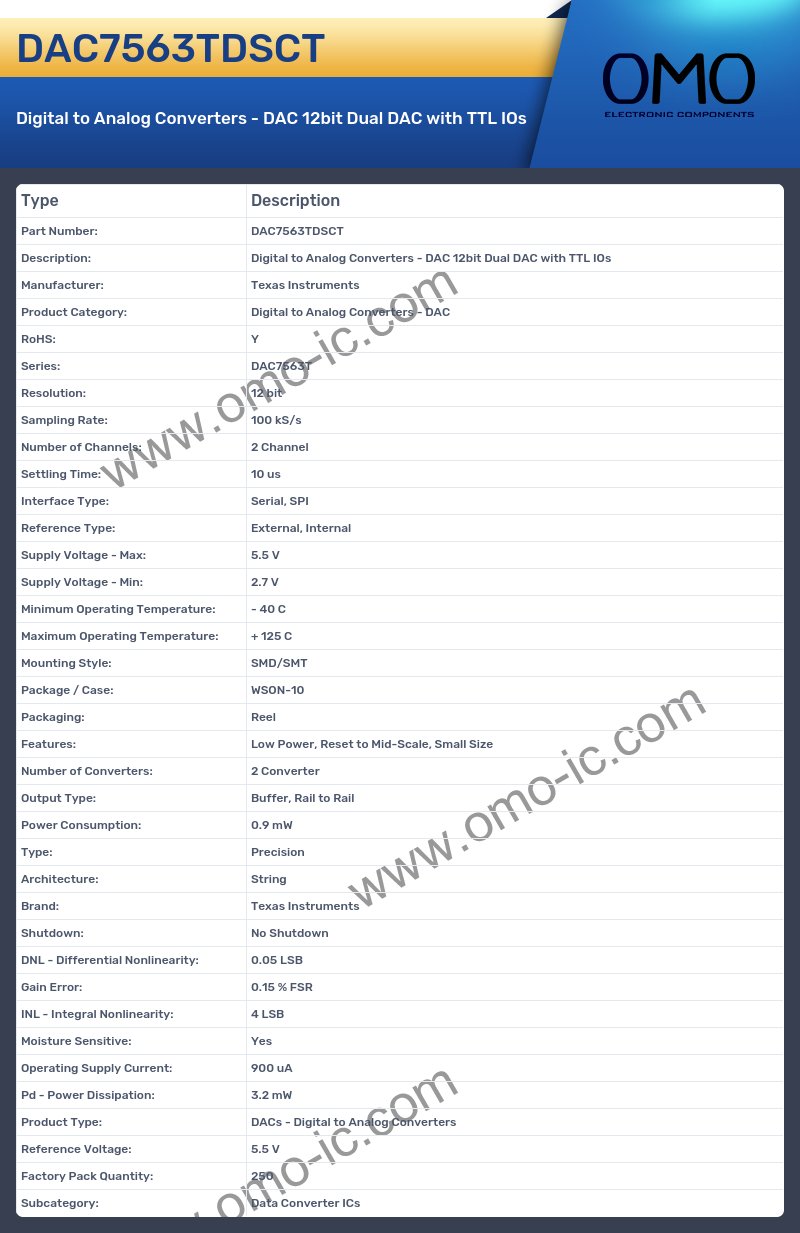

DAC7563TDSCT Image

DAC7563TDSCT Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: DAC7563T
• Resolution: 12 bit
• Sampling Rate: 100 kS/s
• Number of Channels: 2 Channel
• Settling Time: 10 us
• Interface Type: Serial, SPI
• Reference Type: External, Internal
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: WSON-10
• Packaging: Reel
• Features: Low Power, Reset to Mid-Scale, Small Size
• Number of Converters: 2 Converter
• Output Type: Buffer, Rail to Rail
• Power Consumption: 0.9 mW
• Type: Precision
• Architecture: String
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.05 LSB
• Gain Error: 0.15 % FSR
• INL - Integral Nonlinearity: 4 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 900 uA
• Pd - Power Dissipation: 3.2 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 5.5 V
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
