CSD19538Q2T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-FET-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 100 V 14.4 A continuous drain current Rds On value of 59 mOhms Gate-Source Threshold Voltage Range: 3.2 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.75 mm. 2 mm long Texas Instruments is a trusted brand for quality electronics 2 ns fall time MOSFET product type Rise Time is 3 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 7 ns. The typical turn-on delay time is 5 ns. 1. 0.000208 oz of Unit Weight

CSD19538Q2T Image

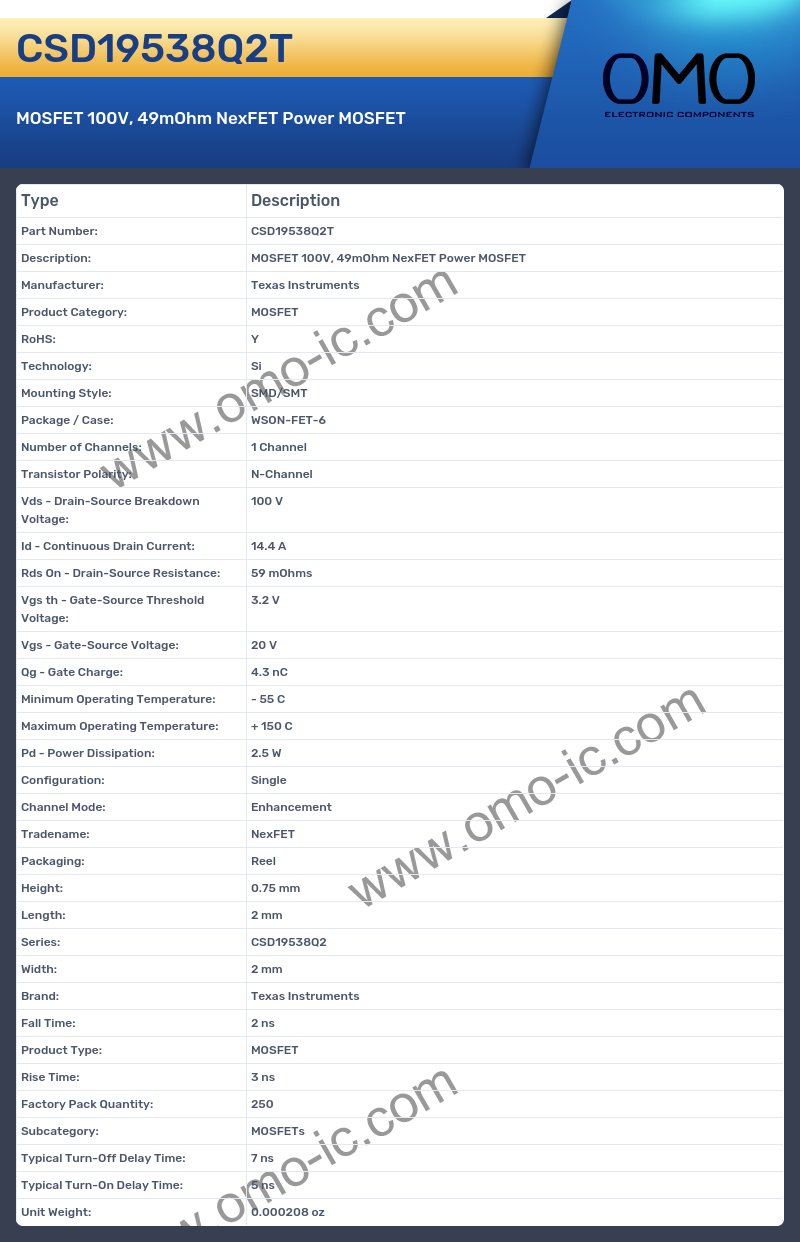

CSD19538Q2T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-FET-6
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 100 V
• Id - Continuous Drain Current: 14.4 A
• Rds On - Drain-Source Resistance: 59 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3.2 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 4.3 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.75 mm
• Length: 2 mm
• Series: CSD19538Q2
• Width: 2 mm
• Brand: Texas Instruments
• Fall Time: 2 ns
• Product Type: MOSFET
• Rise Time: 3 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 7 ns
• Typical Turn-On Delay Time: 5 ns
• Unit Weight: 0.000208 oz
