CSD13381F4

CSD13381F4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 12 V 2.1 A continuous drain current Rds On value of 180 mOhms Gate-Source Threshold Voltage Range: 650 mV Gate-Source Voltage: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 500 mW (1/2 W) This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.35 mm. 1 mm long The Transistor Type is 1 N-Channel FemtoFET MOSFET. Texas Instruments is a trusted brand for quality electronics 3.8 ns fall time MOSFET product type Rise Time is 1.5 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 11 ns. The typical turn-on delay time is 3.7 ns. 1. 0.000014 oz of Unit Weight

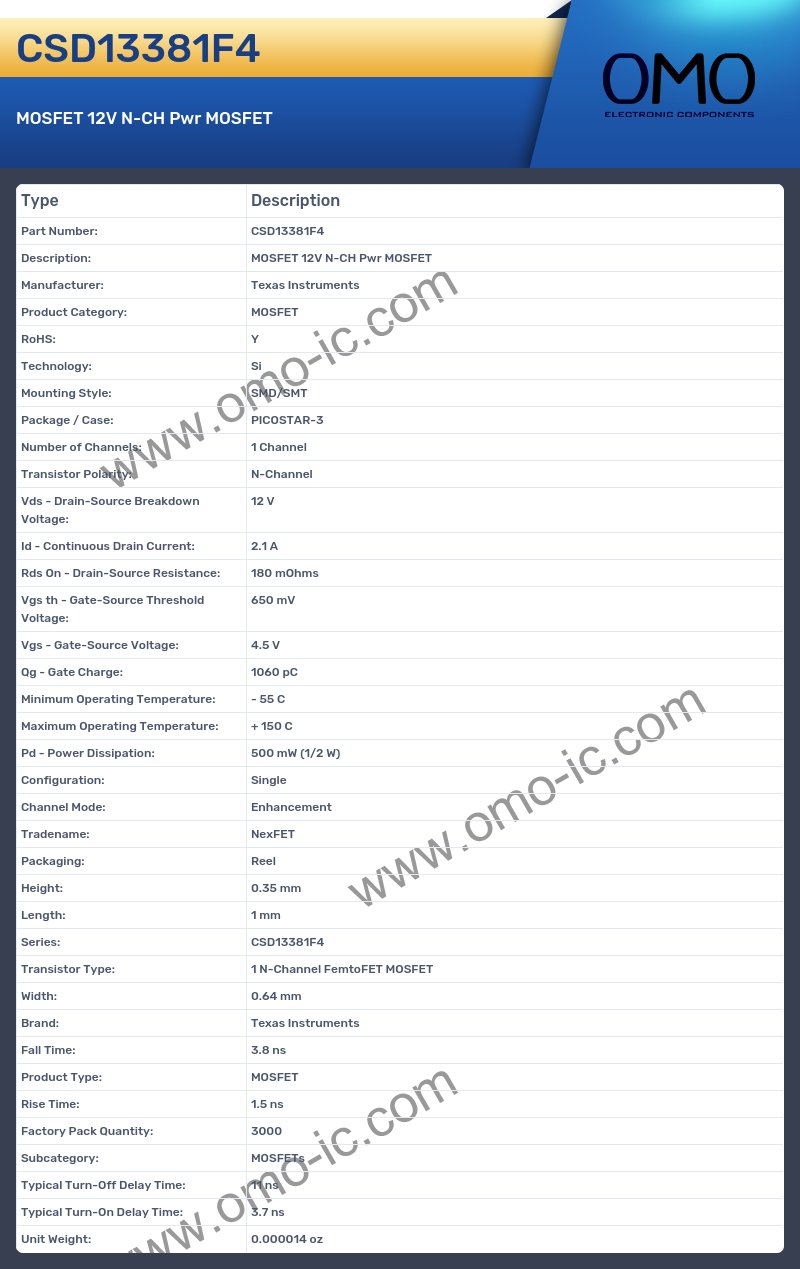

CSD13381F4 Image

CSD13381F4 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 12 V
• Id - Continuous Drain Current: 2.1 A
• Rds On - Drain-Source Resistance: 180 mOhms
• Vgs th - Gate-Source Threshold Voltage: 650 mV
• Vgs - Gate-Source Voltage: 4.5 V
• Qg - Gate Charge: 1060 pC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 500 mW (1/2 W)
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.35 mm
• Length: 1 mm
• Series: CSD13381F4
• Transistor Type: 1 N-Channel FemtoFET MOSFET
• Width: 0.64 mm
• Brand: Texas Instruments
• Fall Time: 3.8 ns
• Product Type: MOSFET
• Rise Time: 1.5 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 11 ns
• Typical Turn-On Delay Time: 3.7 ns
• Unit Weight: 0.000014 oz
