CD74HC595NSG4

CD74HC595NSG4 Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit SO-16 package/case type is utilized by this product. The product uses the HC logic family. CMOS. The output type is 3-State. The propagation delay time is 200 ns, 40 ns, 34 ns. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing t's a Shift Register Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. Counter Shift Registers product type 1 of 100 Logic ICs as subcategory 1. 0.007079 oz of Unit Weight

CD74HC595NSG4 Image

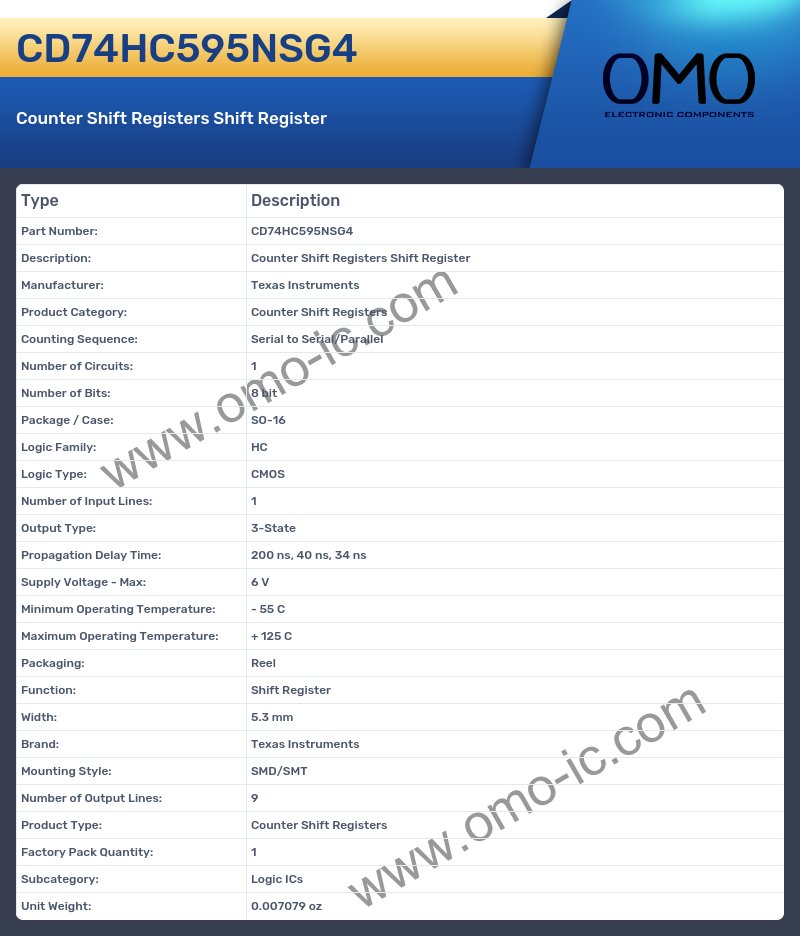

CD74HC595NSG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: SO-16
• Logic Family: HC
• Logic Type: CMOS
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 200 ns, 40 ns, 34 ns
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Function: Shift Register
• Width: 5.3 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.007079 oz
