CD74ACT109EE4

CD74ACT109EE4 Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the ACT logic family. Edge Triggered Flip-Flop. Polarity type: Inverting/Non-Inverting Single-Ended input type The output type is Differential. The propagation delay time is 10.3 ns. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a J-K Type The height of the product is 4.57 mm. 19.3 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 4.5 V to 5.5 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

CD74ACT109EE4 Image

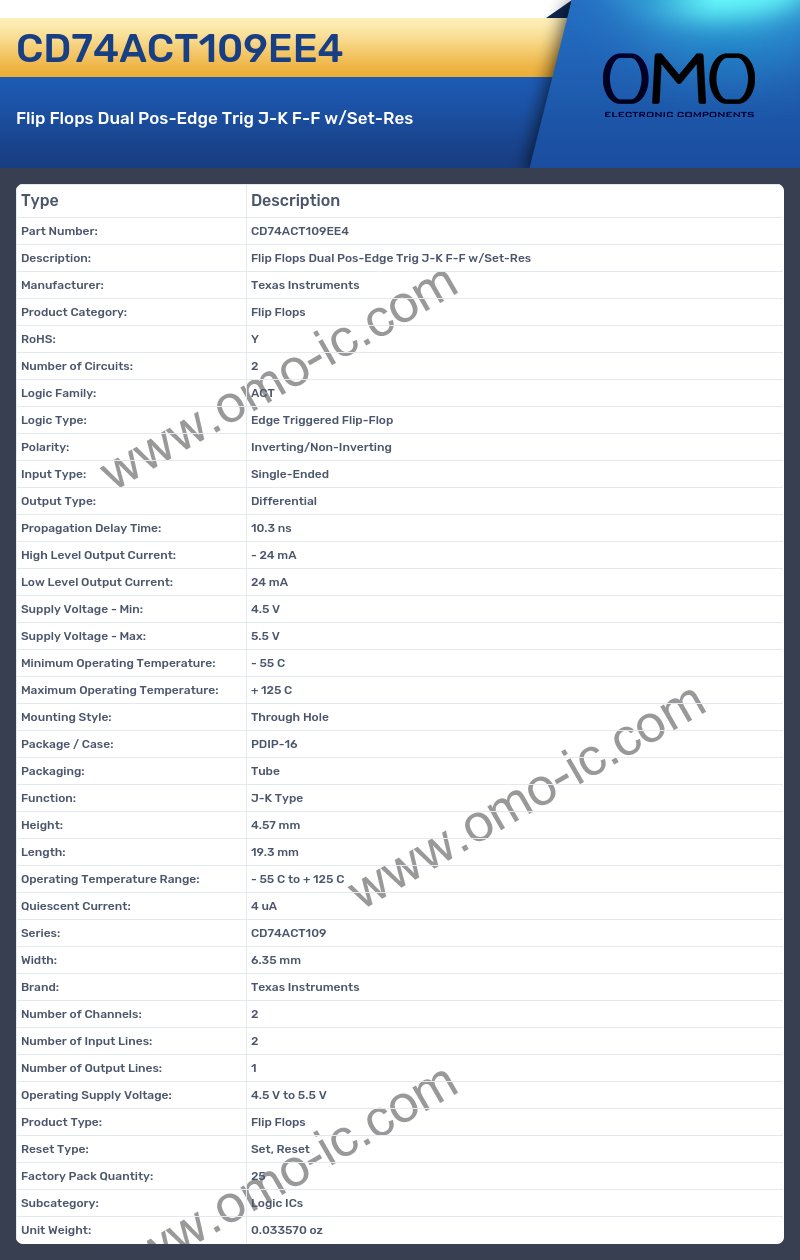

CD74ACT109EE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: ACT
• Logic Type: Edge Triggered Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: Single-Ended
• Output Type: Differential
• Propagation Delay Time: 10.3 ns
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Function: J-K Type
• Height: 4.57 mm
• Length: 19.3 mm
• Operating Temperature Range: - 55 C to + 125 C
• Quiescent Current: 4 uA
• Series: CD74ACT109
• Width: 6.35 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 2
• Number of Output Lines: 1
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
