CD4515BE

CD4515BE Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the CD4000 logic family. Number of bits: 4 bit The propagation delay time is 370 ns. Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Latch/Decoder/Demultiplexer The height of the product is 4.57 mm. 31.75 mm long This product has 1 Circuit circuit. Texas Instruments is a trusted brand for quality electronics Decoder. Maximum supply current: 0.1 mA This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA The Maximum Clock Frequency of this product is 8 MHz. 3 V to 18 V operating supply voltage range 1150 mW Encoders, Decoders, Multiplexers & Demultiplexers product type 15 of 100 Logic ICs as subcategory 1. 0.131759 oz of Unit Weight

CD4515BE Image

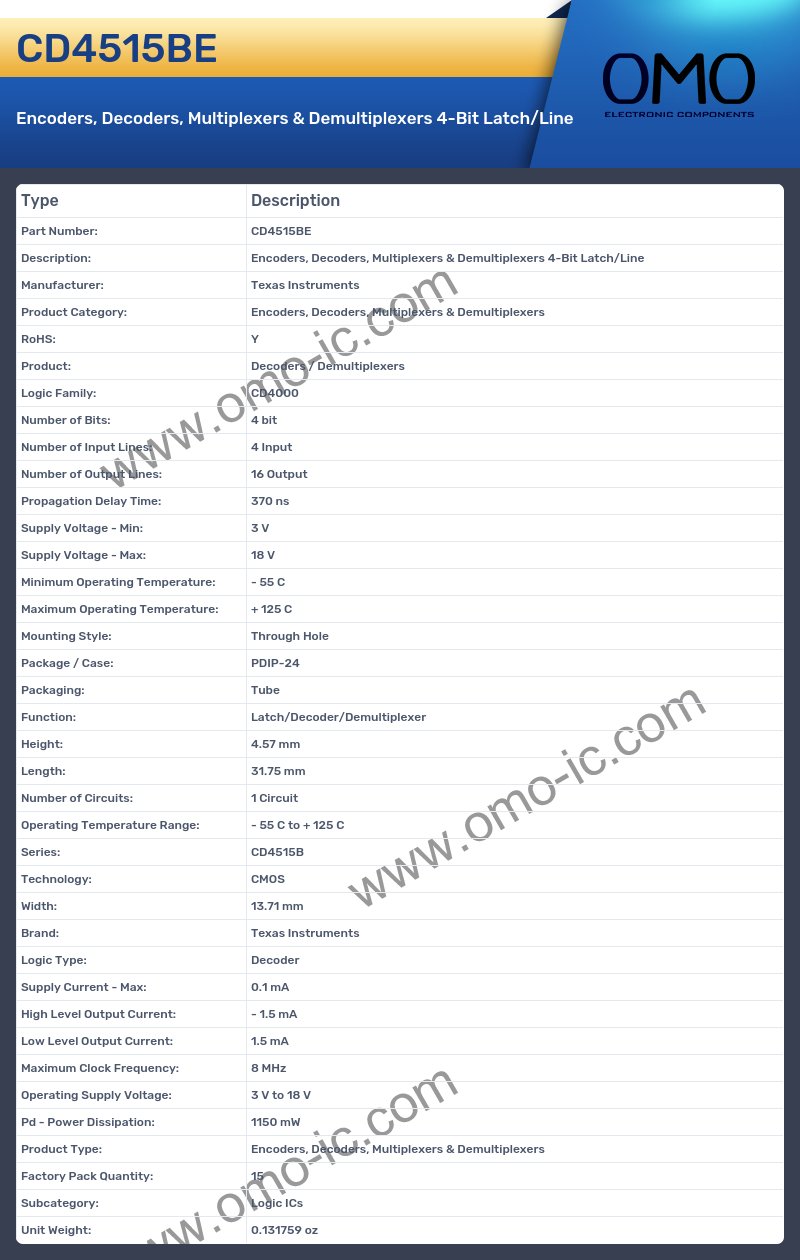

CD4515BE Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: CD4000
• Number of Bits: 4 bit
• Number of Input Lines: 4 Input
• Number of Output Lines: 16 Output
• Propagation Delay Time: 370 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-24
• Packaging: Tube
• Function: Latch/Decoder/Demultiplexer
• Height: 4.57 mm
• Length: 31.75 mm
• Number of Circuits: 1 Circuit
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD4515B
• Technology: CMOS
• Width: 13.71 mm
• Brand: Texas Instruments
• Logic Type: Decoder
• Supply Current - Max: 0.1 mA
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Maximum Clock Frequency: 8 MHz
• Operating Supply Voltage: 3 V to 18 V
• Pd - Power Dissipation: 1150 mW
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 15
• Subcategory: Logic ICs
• Unit Weight: 0.131759 oz
