CD4011BM96

CD4011BM96 Overview

This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the CD4000 logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA The propagation delay time is 60 ns. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.58 mm. CMOS input type 8.65 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics 2-Input NAND. Number of bits: 4 bit 10 V operating supply voltage range 500 mW (1/2 W) Logic Gates product type 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

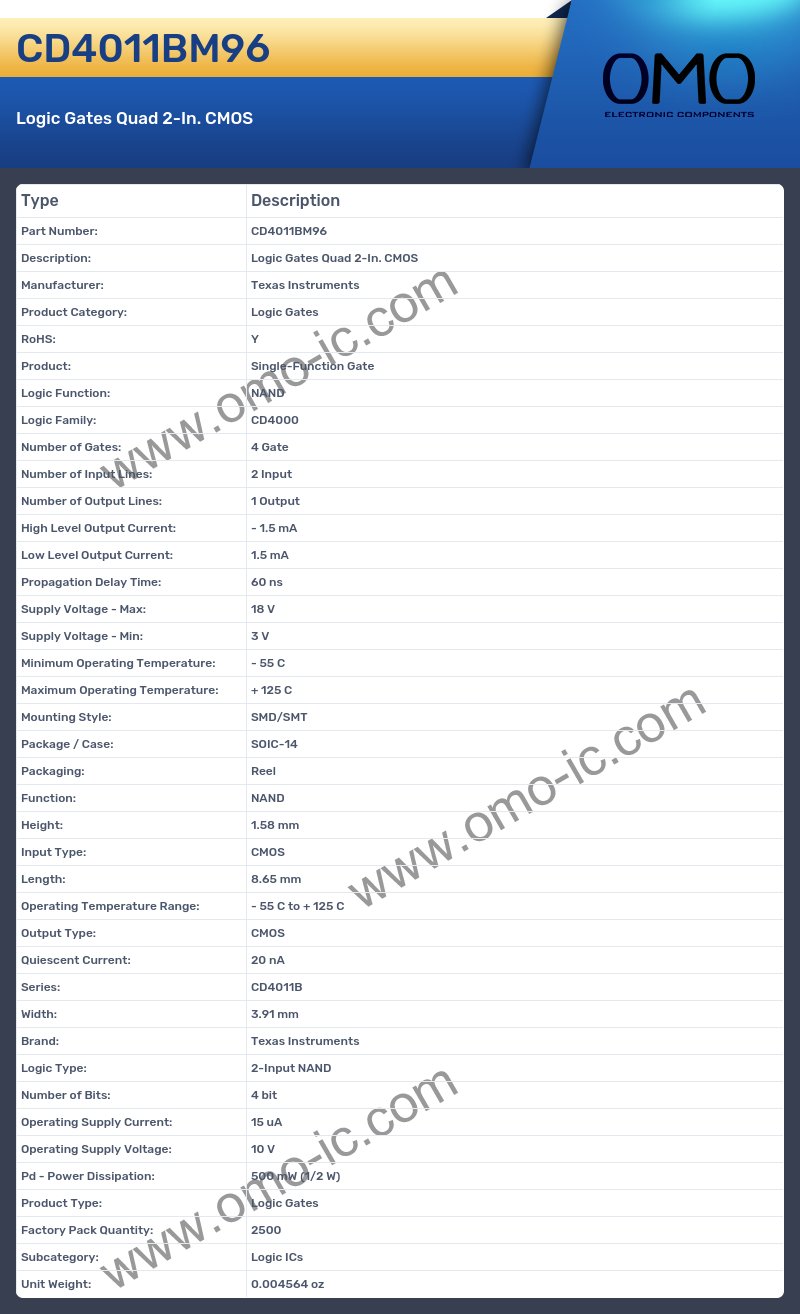

CD4011BM96 Image

CD4011BM96 Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: CD4000
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Propagation Delay Time: 60 ns
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: NAND
• Height: 1.58 mm
• Input Type: CMOS
• Length: 8.65 mm
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 20 nA
• Series: CD4011B
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: 2-Input NAND
• Number of Bits: 4 bit
• Operating Supply Current: 15 uA
• Operating Supply Voltage: 10 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Logic Gates
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
