This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 20 MS/s. Differential input type Interface Type: Serial Sigma-Delta architecture Supply is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The output type is CMOS. This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 4 LSB Yes regarding Moisture Sensitivity 28.5 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory THD is as low as - 83 dB. 1. 0.005235 oz of Unit Weight

AMC1305M05DW Image

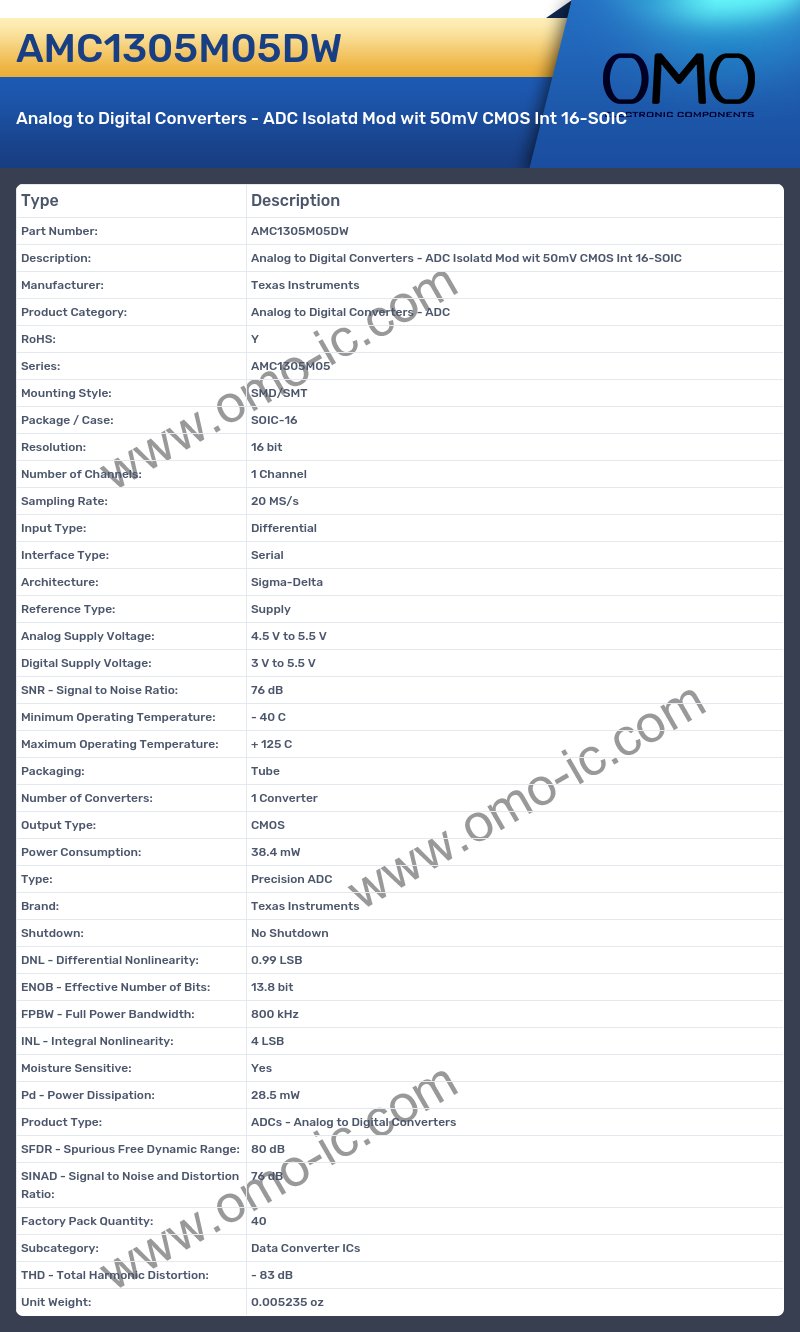

AMC1305M05DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AMC1305M05
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 20 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: Sigma-Delta
• Reference Type: Supply
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 3 V to 5.5 V
• SNR - Signal to Noise Ratio: 76 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Number of Converters: 1 Converter
• Output Type: CMOS
• Power Consumption: 38.4 mW
• Type: Precision ADC
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.99 LSB
• ENOB - Effective Number of Bits: 13.8 bit
• FPBW - Full Power Bandwidth: 800 kHz
• INL - Integral Nonlinearity: 4 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 28.5 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 80 dB
• SINAD - Signal to Noise and Distortion Ratio: 76 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 83 dB
• Unit Weight: 0.005235 oz
