AMC1200BDWV

AMC1200BDWV Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. 4250 Vrms isolation voltage Galvanic isolation type Bandwidth at -3 dB is 100 kHz This product has a 108 dB of 50 dB, ensuring reliable signal acquisition. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V, 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Isolation. The output type is Differential. Isolation Amplifiers Texas Instruments is a trusted brand for quality electronics Maximum input voltage range of +/- 320 mV This product does not have a No Shutdown feature, ensuring continuous operation. AMC1200EVM is a versatile development platform for hardware and software 0.075 % is 0.2%. Gain ratio is 8 V/V. Yes regarding Moisture Sensitivity 2.7 V to 5.5 V operating supply voltage range 44 mW Isolation Amplifiers product type This product has a 61 dB of 50 dB, providing reliable power supply noise rejection. 64 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

AMC1200BDWV Image

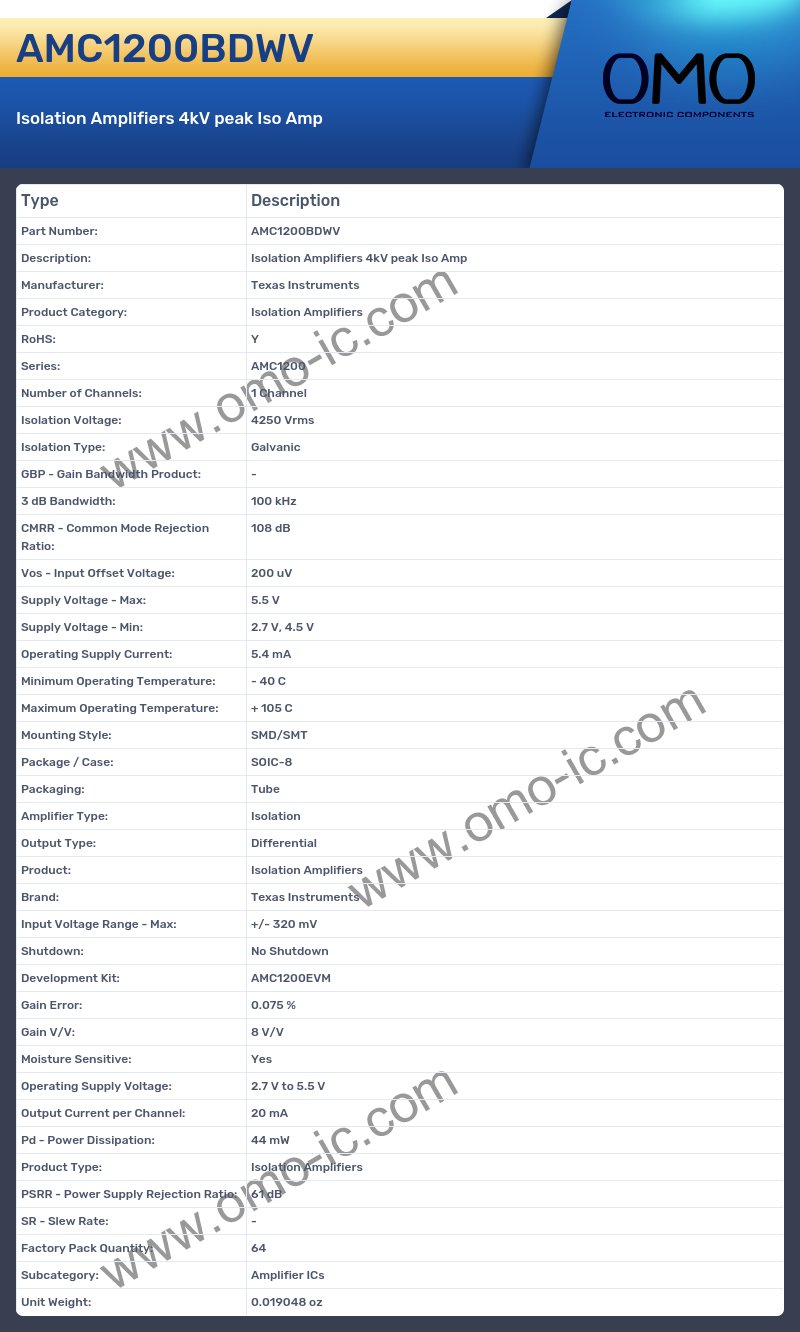

AMC1200BDWV Specifications

• Manufacturer: Texas Instruments
• Product Category: Isolation Amplifiers
• RoHS: Y
• Series: AMC1200
• Number of Channels: 1 Channel
• Isolation Voltage: 4250 Vrms
• Isolation Type: Galvanic
• GBP - Gain Bandwidth Product: -
• 3 dB Bandwidth: 100 kHz
• CMRR - Common Mode Rejection Ratio: 108 dB
• Vos - Input Offset Voltage: 200 uV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V, 4.5 V
• Operating Supply Current: 5.4 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Amplifier Type: Isolation
• Output Type: Differential
• Product: Isolation Amplifiers
• Brand: Texas Instruments
• Input Voltage Range - Max: +/- 320 mV
• Shutdown: No Shutdown
• Development Kit: AMC1200EVM
• Gain Error: 0.075 %
• Gain V/V: 8 V/V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 2.7 V to 5.5 V
• Output Current per Channel: 20 mA
• Pd - Power Dissipation: 44 mW
• Product Type: Isolation Amplifiers
• PSRR - Power Supply Rejection Ratio: 61 dB
• SR - Slew Rate: -
• Factory Pack Quantity: 64
• Subcategory: Amplifier ICs
• Unit Weight: 0.019048 oz
