ADS826E

ADS826E Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 60 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.95 mm. 10.2 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2 LSB Yes regarding Moisture Sensitivity 4.75 V to 5.25 V operating supply voltage range 350 mW ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

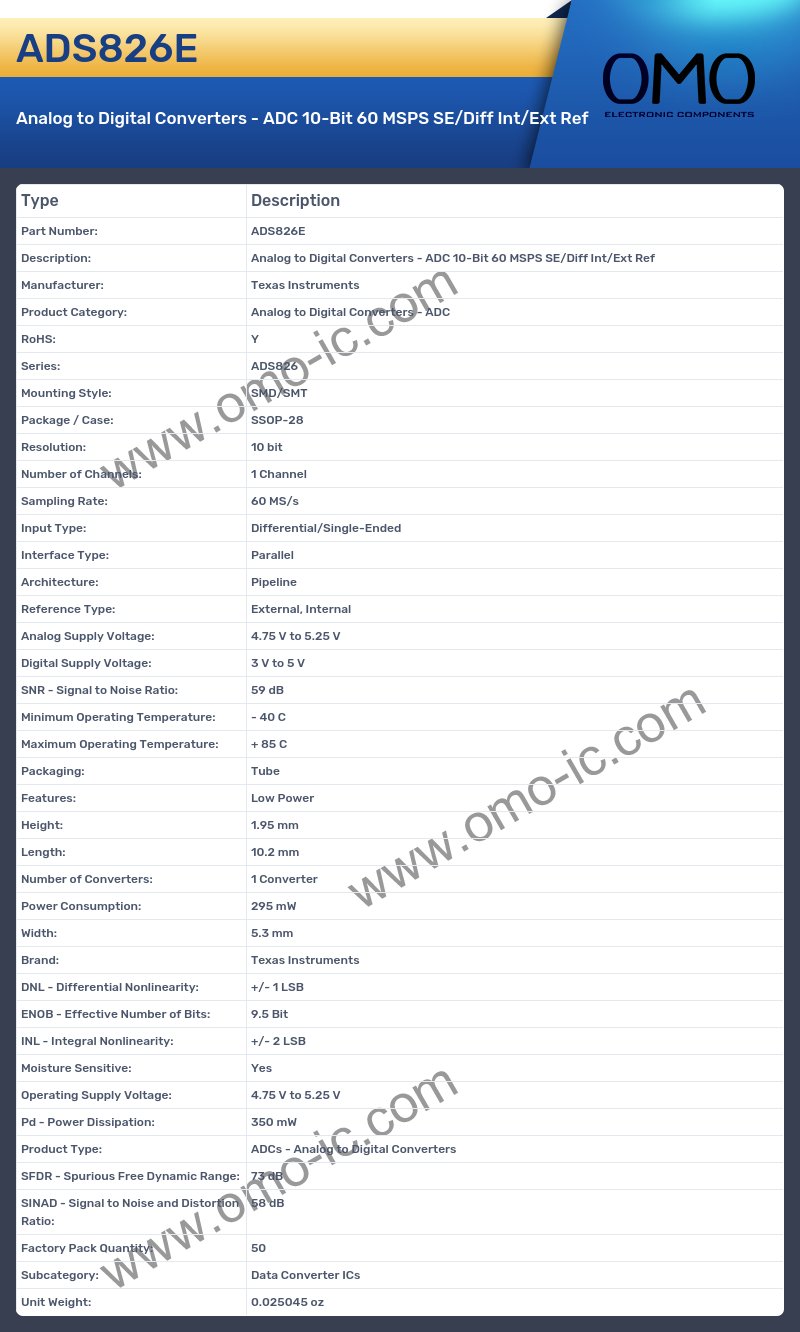

ADS826E Image

ADS826E Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS826
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 60 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 3 V to 5 V
• SNR - Signal to Noise Ratio: 59 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Low Power
• Height: 1.95 mm
• Length: 10.2 mm
• Number of Converters: 1 Converter
• Power Consumption: 295 mW
• Width: 5.3 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• ENOB - Effective Number of Bits: 9.5 Bit
• INL - Integral Nonlinearity: +/- 2 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 350 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 73 dB
• SINAD - Signal to Noise and Distortion Ratio: 58 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
