ADG786BCPZ

ADG786BCPZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 3 Switch number of switches. This product has a 3 x SPDT configuration. Maximum switch voltage is 2.5 V Our product has a maximum 34 ns. Our product has a maximum 12 ns. 1.8 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-20 package/case type is utilized by this product. Tray packaging for easy dispensing The height of the product is 0.83 mm. 4 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 1 uA 1. The maximum dual supply voltage is +/- 2.75 V. +/- 2.25 V minimum dual supply voltage Yes regarding Moisture Sensitivity 5 uW Analog Switch ICs product type 490 of 100 Switch ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.8 V Maximum continuous current: 30 mA 1. 0.000423 oz of Unit Weight

ADG786BCPZ Image

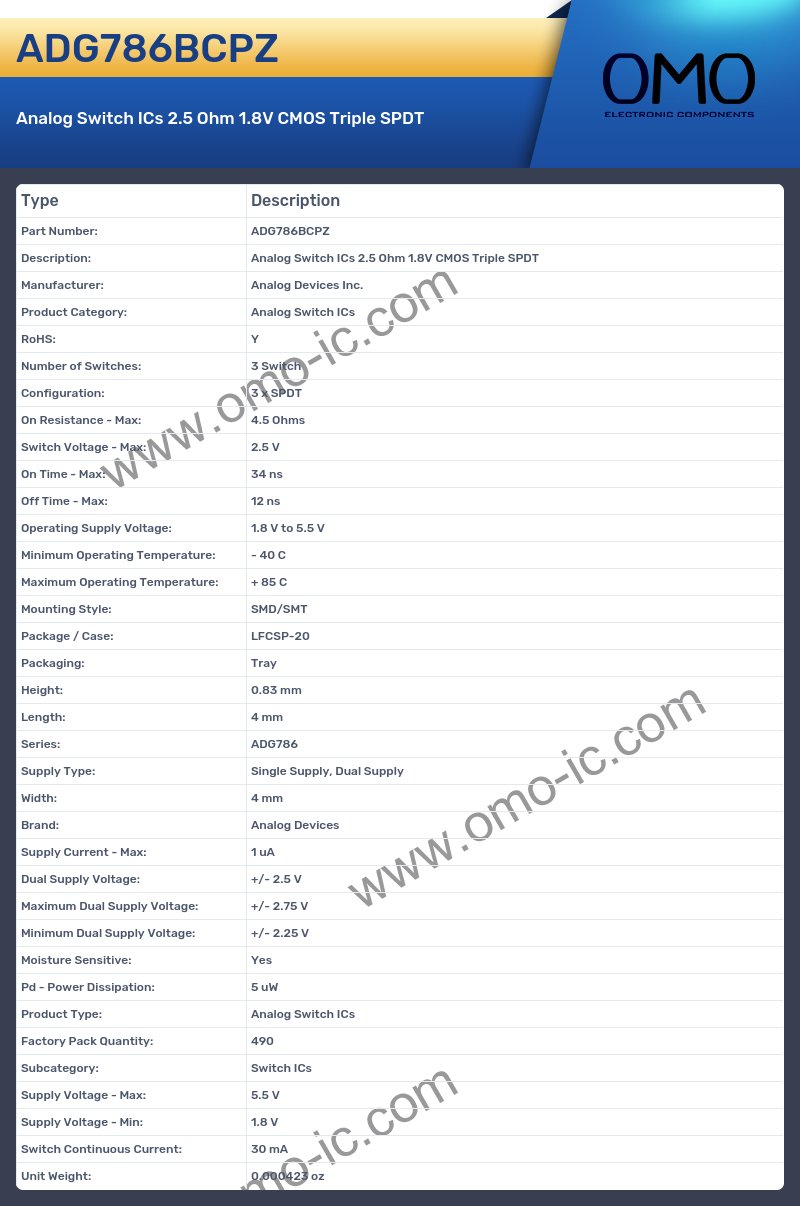

ADG786BCPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 3 Switch
• Configuration: 3 x SPDT
• On Resistance - Max: 4.5 Ohms
• Switch Voltage - Max: 2.5 V
• On Time - Max: 34 ns
• Off Time - Max: 12 ns
• Operating Supply Voltage: 1.8 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-20
• Packaging: Tray
• Height: 0.83 mm
• Length: 4 mm
• Series: ADG786
• Supply Type: Single Supply, Dual Supply
• Width: 4 mm
• Brand: Analog Devices
• Supply Current - Max: 1 uA
• Dual Supply Voltage: +/- 2.5 V
• Maximum Dual Supply Voltage: +/- 2.75 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 5 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 490
• Subcategory: Switch ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.8 V
• Switch Continuous Current: 30 mA
• Unit Weight: 0.000423 oz
