ADG1414BRUZ

ADG1414BRUZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 8 Switch number of switches. This product has a 8 x SPST configuration. Maximum switch voltage is 15 V Our product has a maximum 93 ns. Our product has a maximum 35 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm (Max). 7.8 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 1 uA EVAL-CN0209-SDPZ is a versatile development platform for hardware and software 1. The maximum dual supply voltage is +/- 16.5 V. +/- 4.5 V minimum dual supply voltage 2.8 mW Analog Switch ICs product type 62 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 4.5 V Maximum continuous current: 67 mA 1. 0.007478 oz of Unit Weight

ADG1414BRUZ Image

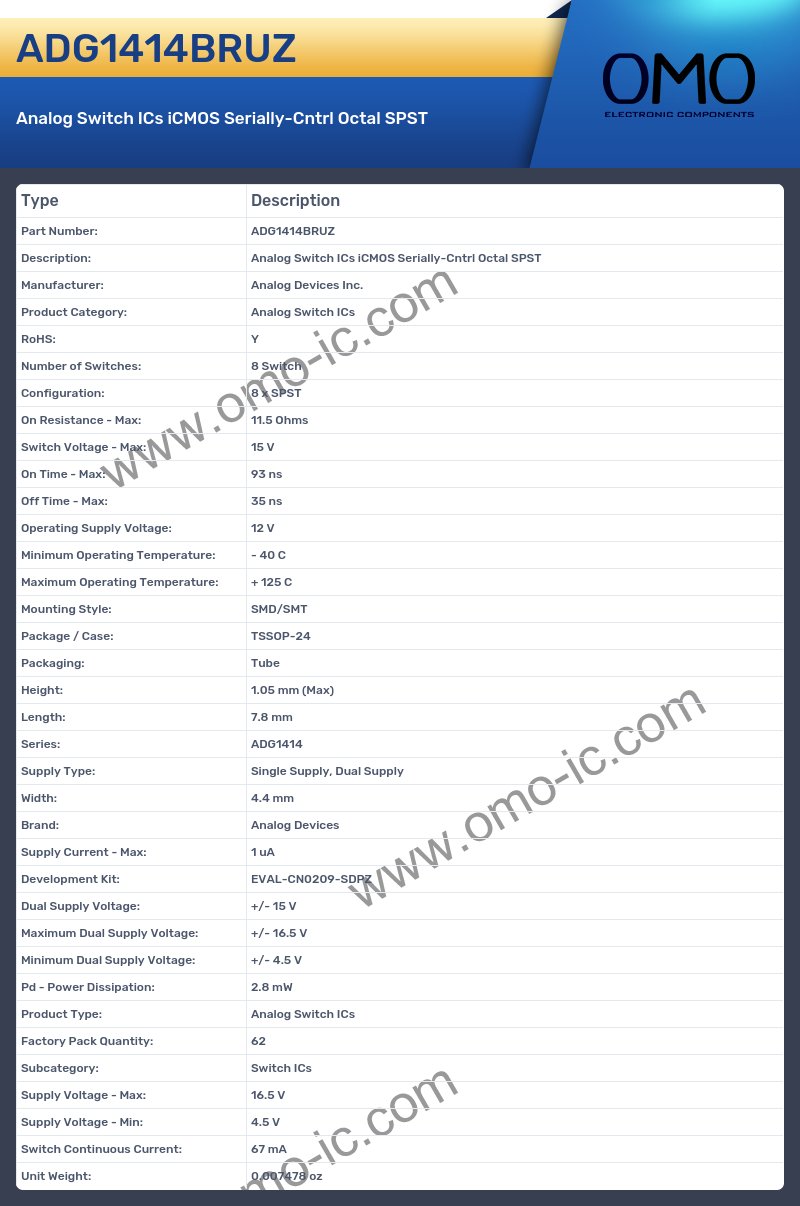

ADG1414BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 8 Switch
• Configuration: 8 x SPST
• On Resistance - Max: 11.5 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 93 ns
• Off Time - Max: 35 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Packaging: Tube
• Height: 1.05 mm (Max)
• Length: 7.8 mm
• Series: ADG1414
• Supply Type: Single Supply, Dual Supply
• Width: 4.4 mm
• Brand: Analog Devices
• Supply Current - Max: 1 uA
• Development Kit: EVAL-CN0209-SDPZ
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 2.8 mW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 62
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 4.5 V
• Switch Continuous Current: 67 mA
• Unit Weight: 0.007478 oz
